CSD87355Q5 Series

Catalog

30-V, N CHANNEL SYNCHRONOUS BUCK NEXFET™ POWER MOSFET, SON 5 MM X 6 MM POWER BLOCK, 45 A

Part	Channel Count	Configuration	Configuration - Features	Mounting Type	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Gate Charge (Max)	Vgs(th) (Max)	Package Name	Package Length	Package Width	Technology	Power - Max	Package / Case	Current - Continuous Drain (Id)	FET Feature	FET Feature Drive Voltage

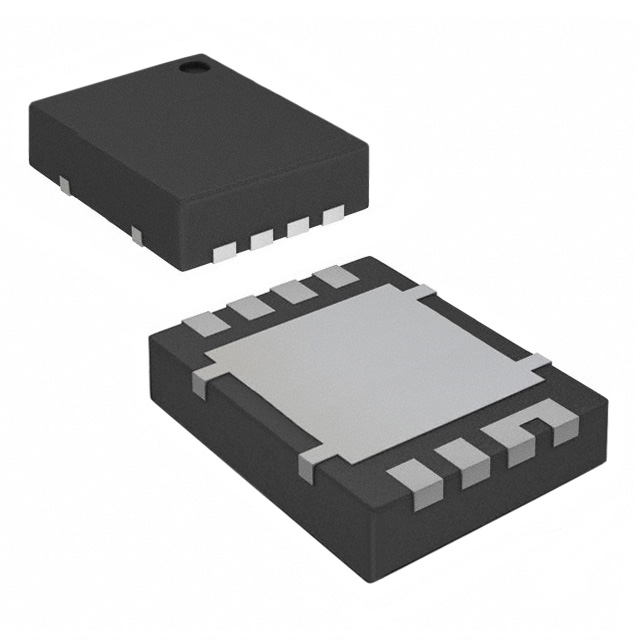

Texas Instruments CSD87355Q5D	2	Asymmetrical N-Channel	Dual	Surface Mount	30 V	1860 pF	-55 °C	150 °C	13.7 nC	1.9 V	8-LSON	5 mm	6 mm	MOSFET (Metal Oxide)	12 W	8-PowerLDFN
Texas Instruments CSD87355Q5DT	2	Asymmetrical N-Channel	Dual	Surface Mount	30 V	1860 pF	-55 °C	155 °C	13.7 nC	1.9 V	8-LSON	5 mm	6 mm	MOSFET (Metal Oxide)	2.8 W	8-PowerLDFN	45 A	Logic Level Gate	5 V
