TPS40422 Series

Dual Output or Multiphase Synchronous Buck Controller with PMBus

Catalog

Dual Output or Multiphase Synchronous Buck Controller with PMBus

Part	Board Type	Supplied Contents	Total Output Count	Output Type	Non-Isolated Output Count	Utilized IC / Part	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Frequency - Switching	Regulator Topology	Current - Output (Min)	Current - Output (Max)	Main Purpose	Voltage - Output	Contents	Function	Control Features	Serial Interfaces	Mounting Type	Package / Case	Output Phases	Operating Temperature (Max)	Operating Temperature (Min)	Clock Sync	Topology	Voltage - Supply (Vcc/Vdd) Maximum	Voltage - Supply (Vcc/Vdd) Minimum	Number of Outputs	Frequency - Switching (Max)	Frequency - Switching (Min)	Output Configuration	Package Width	Package Name	Package Length	Synchronous Rectifier

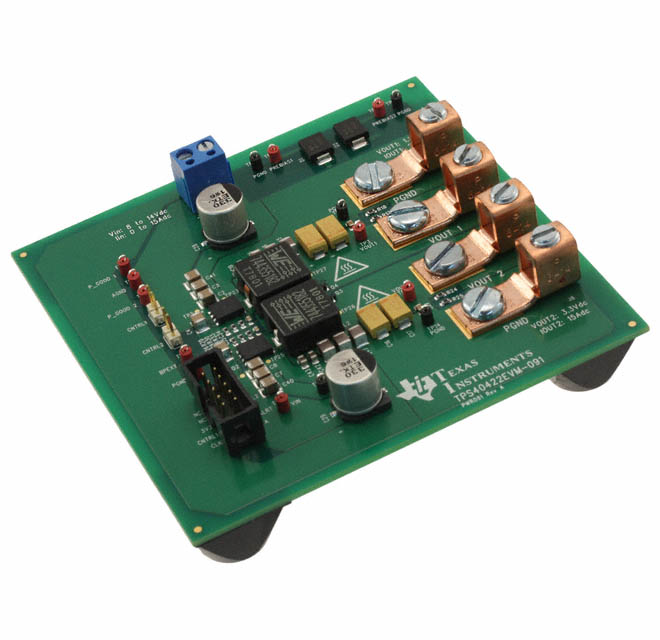

Texas Instruments TPS40422EVM-091	Fully Populated	Board(s)	2	Non-Isolated	2 count	TPS40422	14 V	8 V	460 kHz	Buck	15 A	20 A	DC/DC Step Down	1.2 V 3.3 V	Board
Texas Instruments TPS40422RSBT				Transistor Driver												Step-Down	Frequency Control Power Good	PMBus	Surface Mount	40-WFQFN Exposed Pad	2	125 °C	-40 °C	Yes	Buck	20 V	4.5 V	2	1 MHz	100 kHz	Positive	5 mm	40-WQFN	5 mm	Yes
Texas Instruments TPS40422RSBR				Transistor Driver												Step-Down	Frequency Control Power Good	PMBus	Surface Mount	40-WFQFN Exposed Pad	2	125 °C	-40 °C	Yes	Buck	20 V	4.5 V	2	1 MHz	100 kHz	Positive	5 mm	40-WQFN	5 mm	Yes
Texas Instruments TPS40422RHAT				Transistor Driver												Step-Down	Frequency Control Power Good	PMBus	Surface Mount	40-VFQFN Exposed Pad	2	125 °C	-40 °C	Yes	Buck	20 V	4.5 V	2	1 MHz	100 kHz	Positive	6 mm	40-VQFN	6 mm	Yes
Texas Instruments TPS40422RHAR				Transistor Driver												Step-Down	Frequency Control Power Good	PMBus	Surface Mount	40-VFQFN Exposed Pad	2	125 °C	-40 °C	Yes	Buck	20 V	4.5 V	2	1 MHz	100 kHz	Positive	6 mm	40-VQFN	6 mm	Yes

Catalog

Dual Output or Multiphase Synchronous Buck Controller with PMBus

Description

The TPS40422 is a dual-output PMBus protocol, synchronous buck controller. It can be configured also for a single, two-phase output. The wide input range supports 5-V and 12-V intermediate buses. The accurate reference voltage satisfies the need of precision voltage to the modern ASICs and potentially reduces the output capacitance. Voltage mode control reduces noise sensitivity and also ensures low duty ratio conversion. The TPS40422 is a dual-output PMBus protocol, synchronous buck controller. It can be configured also for a single, two-phase output. The wide input range supports 5-V and 12-V intermediate buses. The accurate reference voltage satisfies the need of precision voltage to the modern ASICs and potentially reduces the output capacitance. Voltage mode control reduces noise sensitivity and also ensures low duty ratio conversion.
