DRV8836 Series
Manufacturer: Texas Instruments
Beta
⌘K

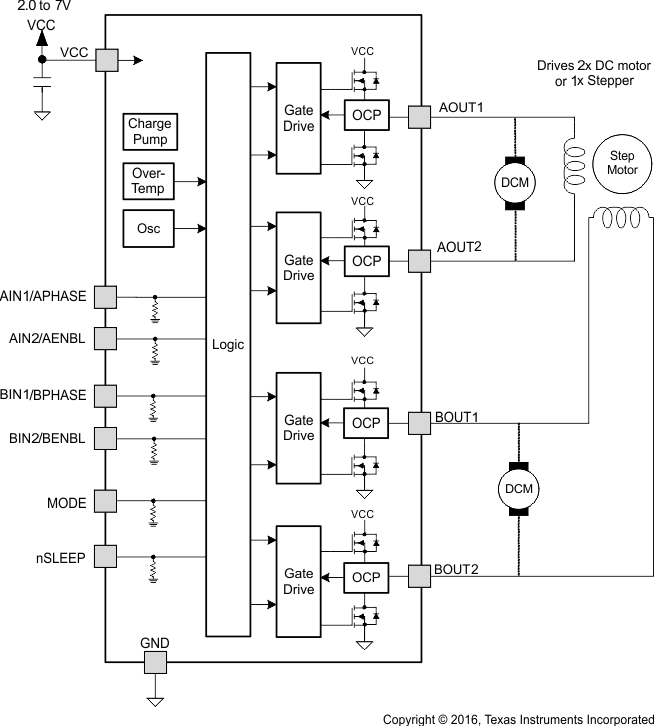

EVAL BOARD FOR DRV8836
| Part | Supplied Contents | Primary Attributes | Embedded | Type | Function | Contents | Utilized IC / Part | Secondary Attributes | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Load (Min) | Voltage - Load (Max) | Package / Case | Motor Type - AC, DC | Technology | Applications | Current - Output | Interface | Package Name | Package Width | Package Length | Motor Type - Stepper | Half-Bridge Count | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | 2 Channel H-Bridge Driver | No | Power Management | Driver Motor Controller | Board | DRV8836 | Short-Circuit Thermal and Undervoltage Protection | |||||||||||||||||||
 Texas Instruments | Control and Power Stage Driver - Fully Integrated | 2 V | 7 V | Surface Mount | -40 °C | 150 °C | 2 V | 7 V | 12-WFDFN Exposed Pad | Brushed DC | Power MOSFET | Battery Powered | 1.5 A | Parallel | 12-WSON | 3 mm | 2 mm | Bipolar | 4 | Half Bridge |
