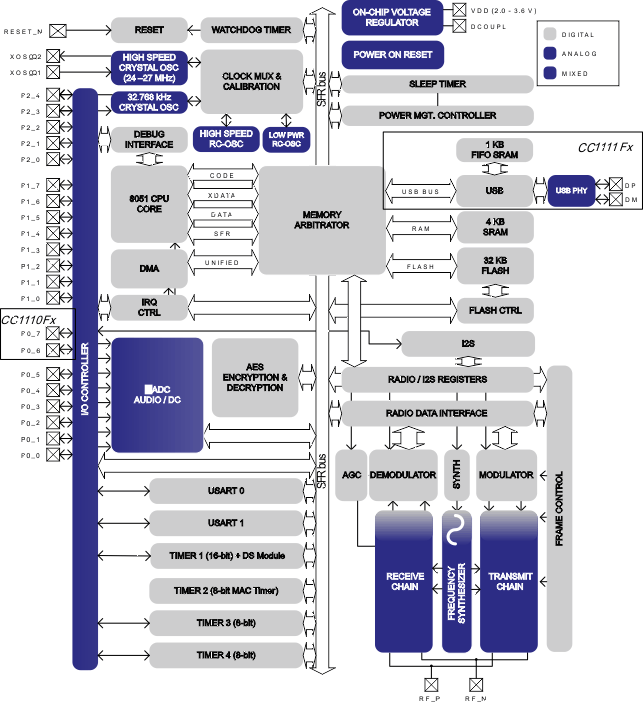

CC1110-CC1111 Series

Catalog

SUB-1 GHZ WIRELESS MCU WITH UP TO 32 KB FLASH MEMORY

Part	Package Length	Package Name	Package Width	Package / Case	Current - Receiving (Max)	Current - Receiving (Min)	Power - Output	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	RF Family/Standard	Memory Type	Memory Size (SRAM)	Memory Size (Flash)	Sensitivity	Type	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Serial Interfaces	GPIO Count	Data Rate (Max)	Current - Transmitting (Min)	Current - Transmitting (Max)	Modulation	Frequency Range 2 (Max)	Frequency Range 3 (Min)	Frequency Range 2 (Min)	Frequency Range 1 (Min)	Frequency Range 1 (Max)	Frequency Range 3 (Max)
Texas Instruments CC1110F8RHHT	6 mm	36-VQFN	6 mm	36-VFQFN Exposed Pad	21.5 mA	16.2 mA	10 dBm	3.6 V	2 V	General ISM < 1GHz	Flash SRAM	1 kB	8 kB	-112 dBm	TxRx + MCU	-40 °C	85 °C	Surface Mount	I2S USART	21	500 kbps	18 mA	36.2 mA	2FSK ASK GFSK MSK OOK	464 MHz	782 MHz	391 MHz	300 MHz	348 MHz	928 MHz
Texas Instruments CC1111F32RSP	6 mm	36-VQFN	6 mm	36-VFQFN Exposed Pad	21.5 mA	16.2 mA	10 dBm	3.6 V	3 V	General ISM < 1GHz	Flash SRAM	4 kB	32 kB	-112 dBm	TxRx + MCU	0 °C	85 °C	Surface Mount	I2S USART USB	19	500 kbps	18 mA	36.2 mA	2FSK ASK GFSK MSK OOK	464 MHz	782 MHz	391 MHz	300 MHz	348 MHz	928 MHz
Texas Instruments CC1110F16RHHR	6 mm	36-VQFN	6 mm	36-VFQFN Exposed Pad	21.5 mA	16.2 mA	10 dBm	3.6 V	2 V	General ISM < 1GHz	Flash SRAM	2 kB	16 kB	-112 dBm	TxRx + MCU	-40 °C	85 °C	Surface Mount	I2S USART	21	500 kbps	18 mA	36.2 mA	2FSK ASK GFSK MSK OOK	464 MHz	782 MHz	391 MHz	300 MHz	348 MHz	928 MHz
Texas Instruments CC1111F32RSPR	6 mm	36-VQFN	6 mm	36-VFQFN Exposed Pad	21.5 mA	16.2 mA	10 dBm	3.6 V	3 V	General ISM < 1GHz	Flash SRAM	4 kB	32 kB	-112 dBm	TxRx + MCU	0 °C	85 °C	Surface Mount	I2S USART USB	19	500 kbps	18 mA	36.2 mA	2FSK ASK GFSK MSK OOK	464 MHz	782 MHz	391 MHz	300 MHz	348 MHz	928 MHz
Texas Instruments CC1111F8RSP	6 mm	36-VQFN	6 mm	36-VFQFN Exposed Pad	21.5 mA	16.2 mA	10 dBm	3.6 V	3 V	General ISM < 1GHz	Flash SRAM	1 kB	8 kB	-112 dBm	TxRx + MCU	0 °C	85 °C	Surface Mount	I2S USART USB	19	500 kbps	18 mA	36.2 mA	2FSK ASK GFSK MSK OOK	464 MHz	782 MHz	391 MHz	300 MHz	348 MHz	928 MHz
Texas Instruments CC1110F8RHHR	6 mm	36-VQFN	6 mm	36-VFQFN Exposed Pad	21.5 mA	16.2 mA	10 dBm	3.6 V	2 V	General ISM < 1GHz	Flash SRAM	1 kB	8 kB	-112 dBm	TxRx + MCU	-40 °C	85 °C	Surface Mount	I2S USART	21	500 kbps	18 mA	36.2 mA	2FSK ASK GFSK MSK OOK	464 MHz	782 MHz	391 MHz	300 MHz	348 MHz	928 MHz
Texas Instruments CC1110F16RHHT	6 mm	36-VQFN	6 mm	36-VFQFN Exposed Pad	21.5 mA	16.2 mA	10 dBm	3.6 V	2 V	General ISM < 1GHz	Flash SRAM	2 kB	16 kB	-112 dBm	TxRx + MCU	-40 °C	85 °C	Surface Mount	I2S USART	21	500 kbps	18 mA	36.2 mA	2FSK ASK GFSK MSK OOK	464 MHz	782 MHz	391 MHz	300 MHz	348 MHz	928 MHz
Texas Instruments CC1110F32RHHT	6 mm	36-VQFN	6 mm	36-VFQFN Exposed Pad	21.5 mA	16.2 mA	10 dBm	3.6 V	2 V	General ISM < 1GHz	Flash SRAM	4 kB	32 kB	-112 dBm	TxRx + MCU	-40 °C	85 °C	Surface Mount	I2S USART	21	500 kbps	18 mA	36.2 mA	2FSK ASK GFSK MSK OOK	464 MHz	782 MHz	391 MHz	300 MHz	348 MHz	928 MHz
Texas Instruments CC1110F32RHHR	6 mm	36-VQFN	6 mm	36-VFQFN Exposed Pad	21.5 mA	16.2 mA	10 dBm	3.6 V	2 V	General ISM < 1GHz	Flash SRAM	4 kB	32 kB	-112 dBm	TxRx + MCU	-40 °C	85 °C	Surface Mount	I2S USART	21	500 kbps	18 mA	36.2 mA	2FSK ASK GFSK MSK OOK	464 MHz	782 MHz	391 MHz	300 MHz	348 MHz	928 MHz
