TAS6424 Series

Automotive, 45-W, 2-MHz, 4-ch 4.5- to 18-V digital input Class-D audio amplifier w/ load dump

Catalog

Automotive, 45-W, 2-MHz, 4-ch 4.5- to 18-V digital input Class-D audio amplifier w/ load dump

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Package Length	Package Width	Output Type	Type	Features	Qualification	Mounting Type	Grade	Channels	Load Impedance	Maximum Output Power (per Channel)	Board Type	Supplied Contents	Utilized IC / Part	Contents	Amplifier Type
Texas Instruments TAS6424LQDKQRQ1	18 V	4.5 V	125 °C	-40 °C	56-HSSOP 56-PowerBSSOP	0.295 in	7.5 mm	4-Channel (Quad)	Class D	Depop Short-Circuit and Thermal Protection	AEC-Q100	Surface Mount	Automotive	4	2 Ohm	80 W
Texas Instruments TAS6424MQDKQRQ1											AEC-Q100		Automotive
Texas Instruments TAS6424LQDKQQ1	18 V	4.5 V	125 °C	-40 °C	56-HSSOP 56-PowerBSSOP	0.295 in	7.5 mm	4-Channel (Quad)	Class D	Depop Digital Inputs I2C I2S Mute Short-Circuit and Thermal Protection Shutdown Volume Control	AEC-Q100	Surface Mount	Automotive	4	2 Ohm	80 W
Texas Instruments TAS6424MSQ1EVM	18 V	4.5 V						4-Channel (Stereo)						1	2 Ohm 4 Ohm	27 W 45 W 80 W	Fully Populated	Board(s) Cable(s)	TAS6424MS-Q1	Board Cable	Class D

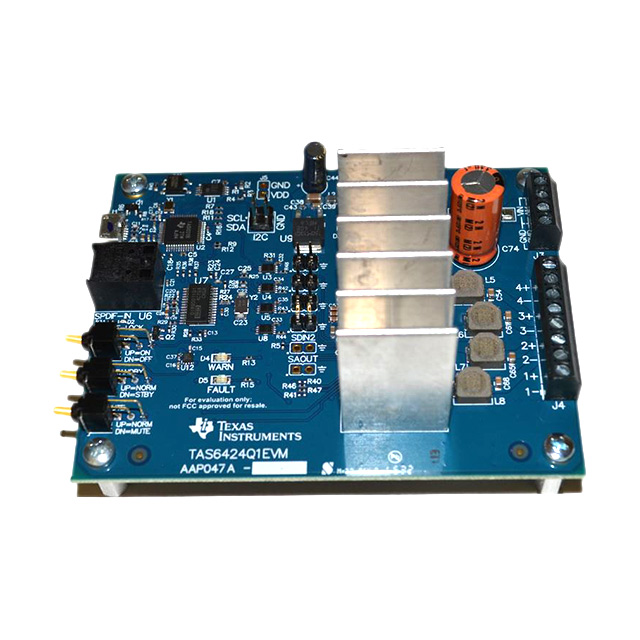

Texas Instruments TAS6424Q1EVM	26 V	4.5 V						4-Channel (Quad)						4	4 Ohm	75 W	Fully Populated	Board(s)	TAS6424-Q1	Board	Class D
Texas Instruments TAS6424QDKQRQ1	26.4 V	4.5 V	125 °C	-40 °C	56-HSSOP 56-PowerBSSOP	0.295 in	7.5 mm	4-Channel (Quad)	Class D	Depop Short-Circuit and Thermal Protection	AEC-Q100	Surface Mount	Automotive	2 4	2 Ohm 4 Ohm	75 W 150 W
Texas Instruments TAS6424MSQDKQRQ1	18 V	4.5 V	125 °C	-40 °C	56-HSSOP 56-PowerBSSOP	0.295 in	7.5 mm	4-Channel (Quad)	Class D		AEC-Q100	Surface Mount	Automotive	4	2 Ohm	80 W

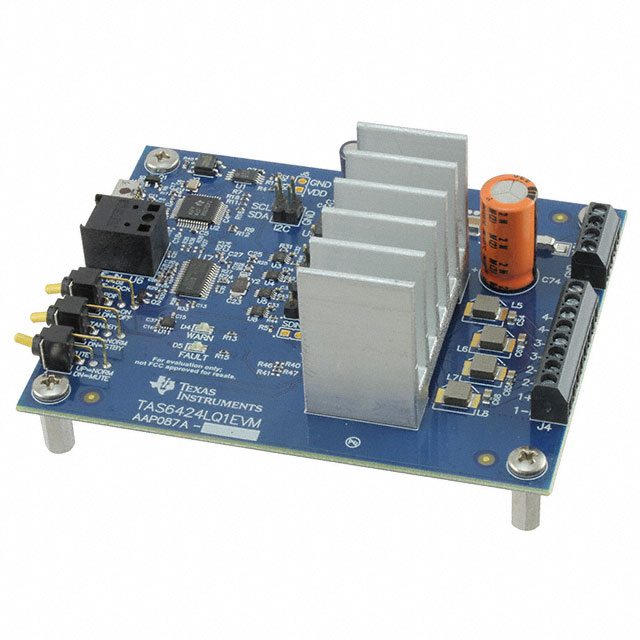

Texas Instruments TAS6424LQ1EVM	18 V	4.5 V						4-Channel (Quad)						2 4	2 Ohm 4 Ohm	45 W 80 W	Fully Populated	Board(s)	TAS6424L-Q1	Board	Class D

Catalog

Automotive, 45-W, 2-MHz, 4-ch 4.5- to 18-V digital input Class-D audio amplifier w/ load dump

Description

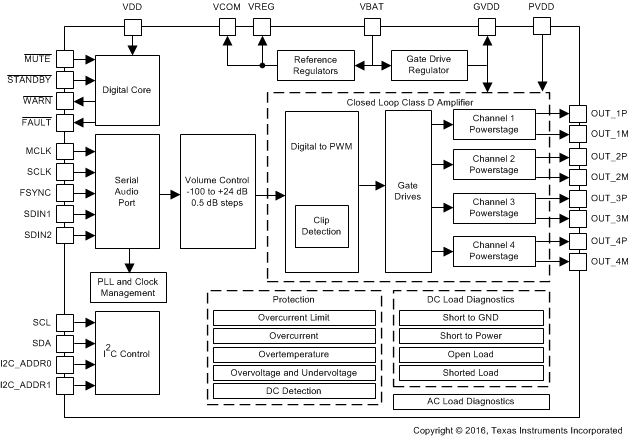

The TAS6424M-Q1 device is a four-channel digital-input Class-D audio amplifier that implements a 2.1 MHz PWM switching frequency enabling a cost-optimized solution in a very small PCB size, full operation down to 4.5 V for start/stop events, and exceptional sound quality with up to 40 kHz audio bandwidth. The output switching frequency can be set either above the AM band, which eliminates AM-band interferences and reduces output filtering and cost, or below the AM band to optimize efficiency. The device has a built-in load diagnostic function for detecting and diagnosing misconnected outputs as well as detection of AC-coupled tweeters to help to reduce test time during the manufacturing process. The TAS6424M-Q1 Class-D audio amplifier is designed for use in automotive head units and external amplifier modules. The device provides four channels at 27 W into 4 Ω at 10% THD+N and 45 W into 2 Ω at 10% THD+N from a 14.4 V supply. For pin compatible one, two and four-channel devices see the TAS6421-Q1, TAS6422-Q1, TAS6424L-Q1 and TAS6424-Q1. The TAS6424M-Q1 device is a four-channel digital-input Class-D audio amplifier that implements a 2.1 MHz PWM switching frequency enabling a cost-optimized solution in a very small PCB size, full operation down to 4.5 V for start/stop events, and exceptional sound quality with up to 40 kHz audio bandwidth. The output switching frequency can be set either above the AM band, which eliminates AM-band interferences and reduces output filtering and cost, or below the AM band to optimize efficiency. The device has a built-in load diagnostic function for detecting and diagnosing misconnected outputs as well as detection of AC-coupled tweeters to help to reduce test time during the manufacturing process. The TAS6424M-Q1 Class-D audio amplifier is designed for use in automotive head units and external amplifier modules. The device provides four channels at 27 W into 4 Ω at 10% THD+N and 45 W into 2 Ω at 10% THD+N from a 14.4 V supply. For pin compatible one, two and four-channel devices see the TAS6421-Q1, TAS6422-Q1, TAS6424L-Q1 and TAS6424-Q1.
