DS25BR204 Series
3.125-Gbps 1:4 LVDS repeater with transmit pre-emphasis and receive equalization
Manufacturer: Texas Instruments
Catalog
3.125-Gbps 1:4 LVDS repeater with transmit pre-emphasis and receive equalization
Beta
⌘K
3.125-Gbps 1:4 LVDS repeater with transmit pre-emphasis and receive equalization
3.125-Gbps 1:4 LVDS repeater with transmit pre-emphasis and receive equalization
3.125-Gbps 1:4 LVDS repeater with transmit pre-emphasis and receive equalization
| Part | Data Rate (Max) | Mounting Type | Output | Package / Case | Channel Configuration | Number of Channels | Type | Signal Conditioning | Capacitance - Input | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Package Length | Package Name | Package Width | Input | Applications | Current - Supply | Operating Temperature (Min) | Operating Temperature (Max) | Delay Time | Supplied Contents | Utilized IC / Part | Function | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 3.125 Gbps | Surface Mount | LVDS | 40-WFQFN Exposed Pad | 2:4 | 1 | Buffer Multiplexer | Input Equalization Output Pre-Emphasis | 1.7 pF | 3.6 V | 3 V | 6 mm | 40-WQFN | 6 mm | CML LVDS LVPECL | LVDS | 150 mA | -40 °C | 85 °C | 460 ps | ||||

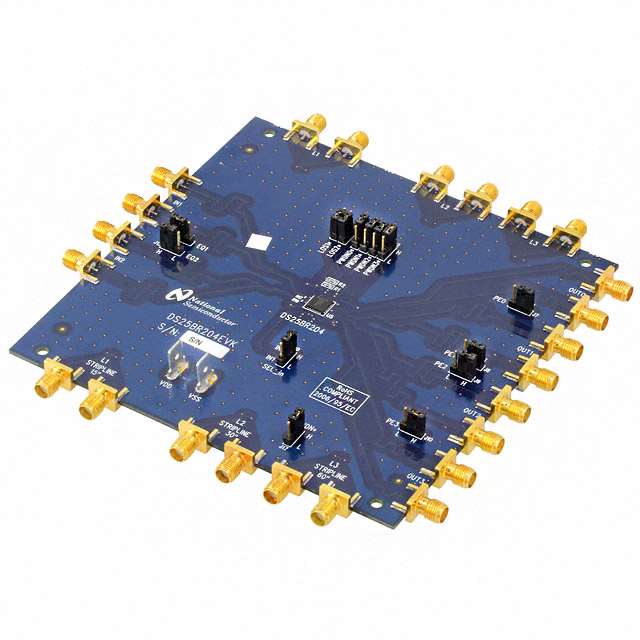

 Texas Instruments | Interface | Board(s) | DS25BR204 | LVDS Repeater | Board | |||||||||||||||||||
 Texas Instruments | 3.125 Gbps | Surface Mount | LVDS | 40-WFQFN Exposed Pad | 2:4 | 1 | Buffer Multiplexer | Input Equalization Output Pre-Emphasis | 1.7 pF | 3.6 V | 3 V | 6 mm | 40-WQFN | 6 mm | CML LVDS LVPECL | LVDS | 150 mA | -40 °C | 85 °C | 460 ps |
