LP5891 Series

Catalog

EVAL BOARD FOR LP5891-Q1

Part	Output Type	Total Output Count	Non-Isolated Output Count	Supplied Contents	Current - Output / Channel	Features	Utilized IC / Part	Voltage - Input (Minimum)	Voltage - Input (Maximum)	Contents	Dimming	Type	Applications	Internal Switch(s)	Package Name	Package Width	Package Length	Number of Outputs	Voltage - Supply (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Package / Case	Voltage - Supply (Min)

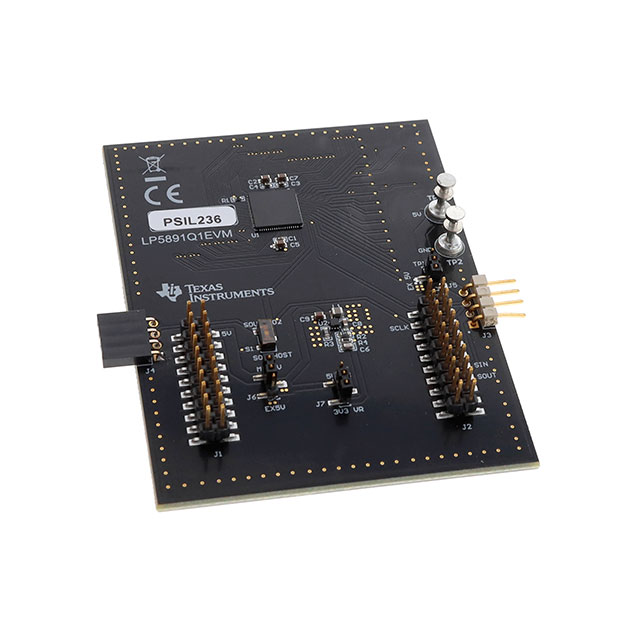

Texas Instruments LP5891Q1EVM	Non-Isolated	48	48	Board(s)	20 mA	Dimmable	LP5891-Q1	2.5 V	5.5 V	Board
Texas Instruments LP5891RRFR					20 mA						PWM	Linear	Backlight	Yes	76-VQFN	9 mm	9 mm	48	5.5 V	85 °C	-40 °C	Surface Mount	76-VFQFN Exposed Pad	2.5 V
Texas Instruments LP5891ZXLR					20 mA						PWM	Linear	Backlight	Yes	96-NFBGA	6 mm	6 mm	48	5.5 V	85 °C	-40 °C	Surface Mount	96-TFBGA	2.5 V
Texas Instruments LP5891EVM	Non-Isolated	48	48		20 mA	Dimmable	LP5891	2.5 V	5.5 V	Board
Texas Instruments LP5891MRRFR					20 mA						PWM	Linear	Backlight	Yes	76-VQFN	9 mm	9 mm	48	5.5 V	125 °C	-55 °C	Surface Mount	76-VFQFN Exposed Pad	2.5 V
