ADS1231 Series

Catalog

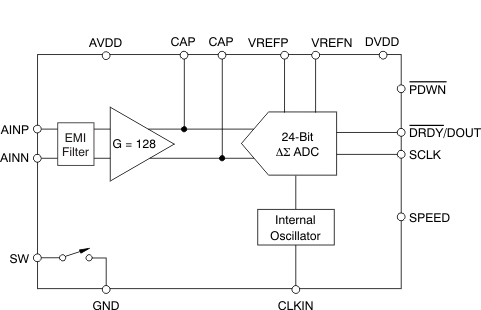

24-BIT, 80SPS, 1-CH DELTA-SIGMA ADC FOR RESISTIVE BRIDGE SENSORS & WEIGH SCALES

Part	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Number of Inputs	Configuration	Mounting Type	Number of Bits	Sampling Rate (Per Second)	Package Width	Package Name	Package Length	Data Interface	Reference Type	Number of A/D Converters	Architecture	Operating Temperature (Min)	Operating Temperature (Max)	Input Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Supplied Contents	Power (Typ)	Utilized IC / Part	Sampling Rate (Per Second)	Contents
Texas Instruments ADS1231IDR	5.3 V	3 V	1	ADC	Surface Mount	24 bits	80 Hz	3.9 mm	16-SOIC	0.154 in	Serial	External	1 count	Sigma-Delta	-40 °C	85 °C	Differential	3 V	5.3 V

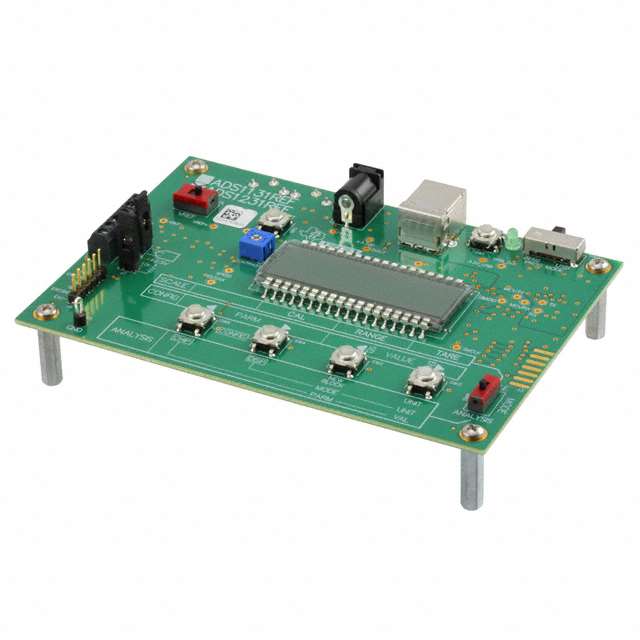

Texas Instruments ADS1231REF						24 bits	10 Hz 80 Hz				Serial		1 count							Board(s)	5 mW	ADS1231	10 80	Board
Texas Instruments ADS1231ID	5.3 V	3 V	1	ADC	Surface Mount	24 bits	80 Hz	3.9 mm	16-SOIC	0.154 in	Serial	External	1 count	Sigma-Delta	-40 °C	85 °C	Differential	3 V	5.3 V
