DRV8846 Series
Manufacturer: Texas Instruments
Beta
⌘K
18-V, 1.4-A BIPOLAR STEPPER MOTOR DRIVER WITH 1/32 MICROSTEPPING AND SMART TUNE ADAPTIVE DECAY
| Part | Package Length | Package Name | Package Width | Half-Bridge Count | Output Configuration | Function | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Interface | Operating Temperature (Min) | Operating Temperature (Max) | Applications | Motor Type - Stepper | Technology | Step Resolution (Max) | Step Resolution (Min) | Voltage - Load (Min) | Voltage - Load (Max) | Mounting Type | Package / Case | Current - Output | Supplied Contents | Embedded Bit Width | Embedded | Secondary Attributes | Primary Attributes | Contents | Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 4 mm | 24-VQFN | 4 mm | 4 | Half Bridge | Control and Power Stage Driver - Fully Integrated | 4 V | 18 V | Step/Direction | -40 °C | 150 °C | Stepper Motors | Bipolar | Power MOSFET | 1 | 0.03125 | 4 V | 18 V | Surface Mount | 24-VFQFN Exposed Pad | 1.4 A | ||||||||

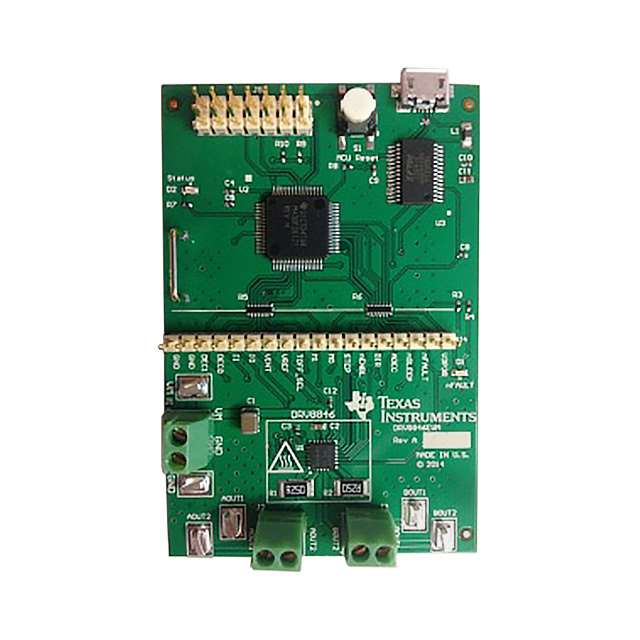

 Texas Instruments | Motor Controller/Driver Stepper | Board(s) | 16 bit | MCU Yes | Graphical User Interface (GUI) | Dual Full-Bridge (H-Bridge) Driver | Board | Power Management | DRV8846 | ||||||||||||||||||||
 Texas Instruments | 4 mm | 24-VQFN | 4 mm | 4 | Half Bridge | Control and Power Stage Driver - Fully Integrated | 4 V | 18 V | Step/Direction | -40 °C | 150 °C | Stepper Motors | Bipolar | Power MOSFET | 1 | 0.03125 | 4 V | 18 V | Surface Mount | 24-VFQFN Exposed Pad | 1.4 A |
