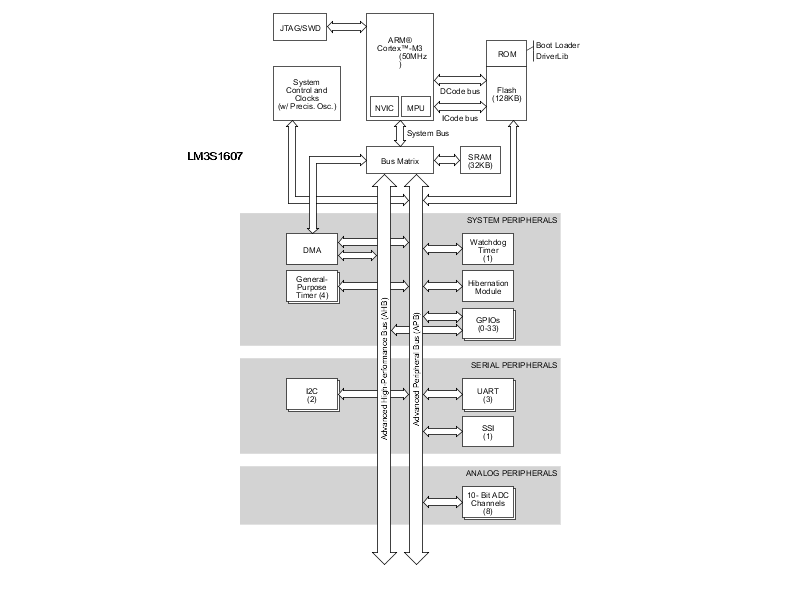

LM3S1607 Series

Catalog

IC MCU 32BIT 128KB FLASH 64LQFP

Part	Peripherals	Number of I/O	Core Processor	Connectivity	Oscillator Type	A/D Channels	A/D Resolution (bits)	Mounting Type	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Speed	Package Length	Package Name	Package Width	Package / Case	RAM Size Width	RAM Size Depth	Core Size (Bit Width)	Operating Temperature (Max)	Operating Temperature (Min)	Program Memory Type	Program Memory Depth (128KB)	Program Memory Size	Program Memory Width (128KB)	Core Configuration
Texas Instruments LM3S1607-IQR50-A0T	Brown-out Detect DMA POR PWM Reset WDT	33	ARM® Cortex®-M3	I2C IrDA Microwire SPI SSI UART USART	Internal	8 count	10 bit	Surface Mount	2.25 V	2.75 V	50 MHz	10 mm	64-LQFP	10 mm	64-LQFP	8 bit	32 K	32 Bit	85 °C	-40 °C	FLASH	128 K	128KB	8	Single-Core
Texas Instruments LM3S1607-IQR50-A0	Brown-out Detect DMA POR PWM Reset WDT	33	ARM® Cortex®-M3	I2C IrDA Microwire SPI SSI UART USART	Internal	8 count	10 bit	Surface Mount	2.25 V	2.75 V	50 MHz	10 mm	64-LQFP	10 mm	64-LQFP	8 bit	32 K	32 Bit	85 °C	-40 °C	FLASH	128 K	128KB	8	Single-Core
