TMP821 Series

30-V max sensored half-wave single-phase BLDC gate driver

Catalog

30-V max sensored half-wave single-phase BLDC gate driver

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Applications	Package Name	Output Configuration	Output Configuration Count	Low-Side Count	Operating Temperature (Min)	Operating Temperature (Max)	Function	Package Length	Package Width	Interface	Mounting Type	Motor Type - AC, DC
Texas Instruments TMP821DR	28 V	4 V	Fan Controller	8-SOIC	Pre-Driver - Low Side Pre-Driver - Low Side (2)	2	2	-40 °C	100 °C	Controller - Commutation Direction Management	0.154 in	3.9 mm	Parallel	Surface Mount	Brushed DC

Catalog

30-V max sensored half-wave single-phase BLDC gate driver

Description

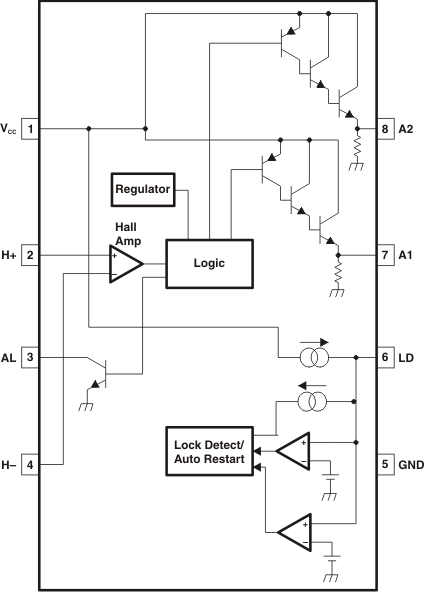

The TMP821 device is a two-phase half-wave motor predriver that is suited for fan motors, which has winding in push-pull configuration. It uses differential hall effect sensors for commutation signals for two of the switches in power circuit. The device has a very small pin count, making it very simple to use. The TMP821 device is a two-phase half-wave motor predriver that is suited for fan motors, which has winding in push-pull configuration. It uses differential hall effect sensors for commutation signals for two of the switches in power circuit. The device has a very small pin count, making it very simple to use.
