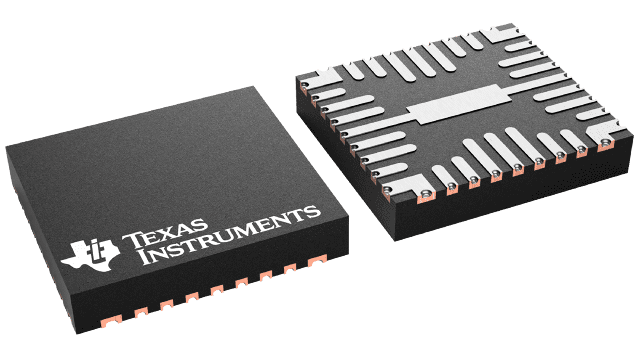

LP8764-Q1 Series

Catalog

4 5-A/20-A MULTIPHASE BUCK CONVERTERS PMIC FOR AUTOMOTIVE SOCS

Part	Frequency - Switching	Voltage - Output (Min/Fixed)	Package / Case	Package Name	Package Width	Package Length	Function	Voltage - Input (Max)	Output Configuration	Synchronous Rectifier	Topology	Output Type	Grade	Mounting Type	Voltage - Input (Min)	Voltage - Output (Max)	Current - Output	Operating Temperature (Max)	Operating Temperature (Min)	Number of Outputs	Qualification
Texas Instruments LP876411B5RQKRQ1	2.2 MHz 4.4 MHz	0.3 V	32-PowerVFQFN	32-QFN	5 mm	5.5 mm	Step-Down	5.5 V	Positive	No	Buck	Adjustable	Automotive	Surface Mount Wettable Flank	2.8 V	3.34 V	20 A	125 °C	-40 °C	4	AEC-Q100
Texas Instruments LP876441B1RQKRQ1	2.2 MHz 4.4 MHz	0.3 V	32-PowerVFQFN	32-QFN	5 mm	5.5 mm	Step-Down	5.5 V	Positive	No	Buck	Adjustable	Automotive	Surface Mount Wettable Flank	2.8 V	3.34 V	20 A	125 °C	-40 °C	4	AEC-Q100
Texas Instruments LP876440C0RQKRQ1	2.2 MHz 4.4 MHz	0.3 V	32-PowerVFQFN	32-VQFN-HR	5 mm	5.5 mm	Step-Down	5.5 V	Positive	No	Buck	Programmable	Automotive	Surface Mount Wettable Flank	2.8 V	3.34 V	20 A	125 °C	-40 °C	4	AEC-Q100
Texas Instruments LP876411B4RQKRQ1	2.2 MHz 4.4 MHz	0.3 V	32-PowerVFQFN	32-QFN	5 mm	5.5 mm	Step-Down	5.5 V	Positive	No	Buck	Adjustable	Automotive	Surface Mount Wettable Flank	2.8 V	3.34 V	20 A	125 °C	-40 °C	4	AEC-Q100
