THS4552 Series

Catalog

DUAL CHANNEL, LOW-NOISE, PRECISION, 150-MHZ, FULLY DIFFERENTIAL AMPLIFIER

Part	Current - Supply	Package Name	Package Length	Package Width	Amplifier Type	Output Type	Slew Rate	Current - Input Bias	Voltage - Supply Span (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Gain Bandwidth Product	Number of Circuits	Voltage - Input Offset	Voltage - Supply Span (Min)	Current - Output / Channel	Mounting Type	Supplied Contents	Current - Supply (Main IC)	Board Type	Channels per IC (Dual)	Channels per IC (Type)	Channels per IC (Count)	Supply Configuration	Voltage - Supply (Single) Maximum	Voltage - Supply (Dual) Maximum (Magnitude)	Voltage - Supply (Single) Minimum	Voltage - Supply (Dual) Minimum (Magnitude)	-3db Bandwidth	Utilized IC / Part	Contents	Package / Case
Texas Instruments THS4552IPWR	1.37 mA	16-TSSOP	0.173 in	4.4 mm	Differential	Differential Rail-to-Rail	220 V/µs	1 µA	5.4 V	125 °C	-40 °C	135 MHz	2	50 µV	2.7 V	65 mA	Surface Mount
Texas Instruments THS4552RTWEVM					Differential	Differential Rail-to-Rail Single-Ended	220 V/µs					135 MHz				80 mA		Board(s)	0.0027 mA	Fully Populated	2	Dual	2	Dual Single	5.4 V	2.7 V	2.7 V	1.35 V	150 MHz	THS4552	Board
Texas Instruments THS4552IRTWT	1.37 mA	24-WQFN	4 mm	4 mm	Differential	Differential Rail-to-Rail	220 V/µs	1 µA	5.4 V	125 °C	-40 °C	135 MHz	2	50 µV	2.7 V	65 mA	Surface Mount															24-WFQFN Exposed Pad

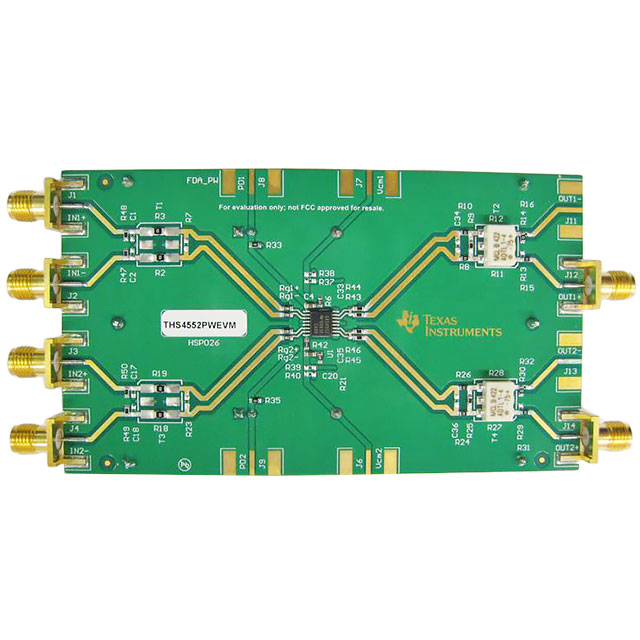

Texas Instruments THS4552PWEVM					Differential	Differential Rail-to-Rail	220 V/µs					135 MHz				80 mA		Board(s)	0.0027 mA	Fully Populated	2	Dual	2	Dual Single	5.4 V	2.7 V	2.7 V	1.35 V	150 MHz	THS4552	Board
Texas Instruments THS4552IRTWR	1.37 mA	24-WQFN	4 mm	4 mm	Differential	Differential Rail-to-Rail	220 V/µs	1 µA	5.4 V	125 °C	-40 °C	135 MHz	2	50 µV	2.7 V	65 mA	Surface Mount															24-WFQFN Exposed Pad
