TPS22917 Series
Manufacturer: Texas Instruments
Beta
⌘K
5.5-V, 2-A, 80-MΩ , 10-NA LEAKAGE LOAD SWITCH ADJ. RISE TIME AND ADJ OUTPUT DISCHARGE
| Part | Input Type | Package / Case | Voltage - Load (Min) | Voltage - Load (Max) | Fault Protection | Mounting Type | Output Type | Package Name | Operating Temperature (Max) | Operating Temperature (Min) | Rds On (Typ) | Features | Output Ratio | Input Ratio | Number of Outputs | Interface | Output Configuration | Voltage - Supply (Vcc/Vdd) Minimum | Voltage - Supply (Vcc/Vdd) Maximum | Current - Output (Max) | Switch Type | Supplied Contents | Contents | Utilized IC / Part | Type | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | Inverting Non-Inverting | SOT-23-6 | 0 V | 5.5 V | Reverse Current | Surface Mount | P-Channel | SOT-23-6 | 125 °C | -40 °C | 80 mOhm 220 mOhm | Load Discharge Slew Rate Controlled | 1 | 1 | 1 | On/Off | High Side | 1 V | 5.5 V | 2 A | General Purpose | |||||
 Texas Instruments | Non-Inverting | SOT-23-6 | 0 V | 5.5 V | Reverse Current | Surface Mount | P-Channel | SOT-23-6 | 125 °C | -40 °C | 80 mOhm | Load Discharge Slew Rate Controlled | 1 | 1 | 1 | On/Off | High Side | 1 V | 5.5 V | 2 A | General Purpose | |||||
Texas Instruments | Non-Inverting | SOT-23-6 | 0 V | 5.5 V | Reverse Current | Surface Mount | P-Channel | SOT-23-6 | 125 °C | -40 °C | 80 mOhm | Load Discharge Slew Rate Controlled | 1 | 1 | 1 | On/Off | High Side | 1 V | 5.5 V | 2 A | General Purpose | |||||

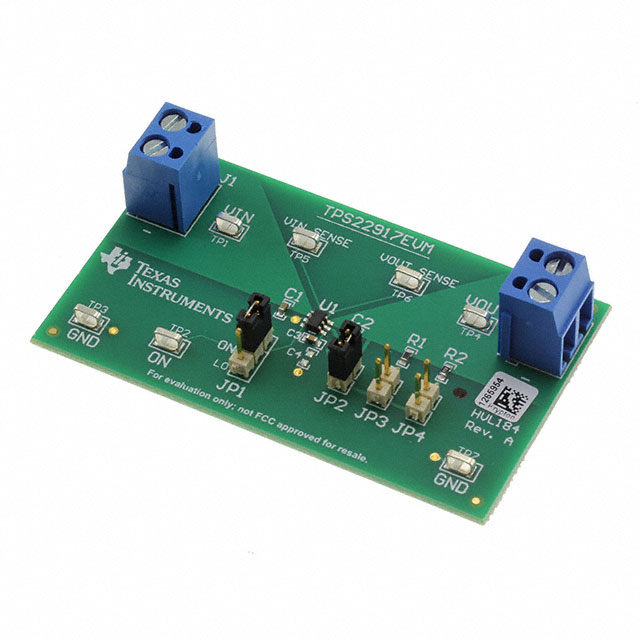

 Texas Instruments | Board(s) | Board | TPS22917 | Power Management | Power Distribution Switch (Load Switch) |
