ADS4449 Series

Quad-Channel, 14-Bit, 250-MSPS Analog-to-Digital Converter (ADC)

Catalog

Quad-Channel, 14-Bit, 250-MSPS Analog-to-Digital Converter (ADC)

Part	Reference Type	Input Type	Number of Inputs	Sampling Rate (Per Second)	Configuration	Architecture	Number of Bits	Number of A/D Converters	Ratio - ADC	Ratio - S/H	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Features	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Package Name	Package Length	Package Width	Data Interface	Mounting Type	Supplied Contents	Input Voltage (Value)	Utilized IC / Part	Power (Typ)	Contents
Texas Instruments ADS4449IZCRR	External Internal	Differential	4	250 MHz	S/H-ADC	Pipelined	14 bits	2 count	1	1	1.7 V	2 V	Simultaneous Sampling	2 V	1.8 V	-40 °C	85 °C	144-LFBGA	144-NFBGA	10 mm	10 mm	LVDS - Serial	Surface Mount
Texas Instruments ADS4449EVM				250 MHz			14 bits	4 count														DDR LVDS		Board(s)	2 Vpp	ADS4449	1.47 W	Board
Texas Instruments ADS4449IZCR	External Internal	Differential	4	250 MHz	S/H-ADC	Pipelined	14 bits	2 count	1	1	1.7 V	2 V	Simultaneous Sampling	2 V	1.8 V	-40 °C	85 °C	144-LFBGA	144-NFBGA	10 mm	10 mm	LVDS - Serial	Surface Mount

Catalog

Quad-Channel, 14-Bit, 250-MSPS Analog-to-Digital Converter (ADC)

Description

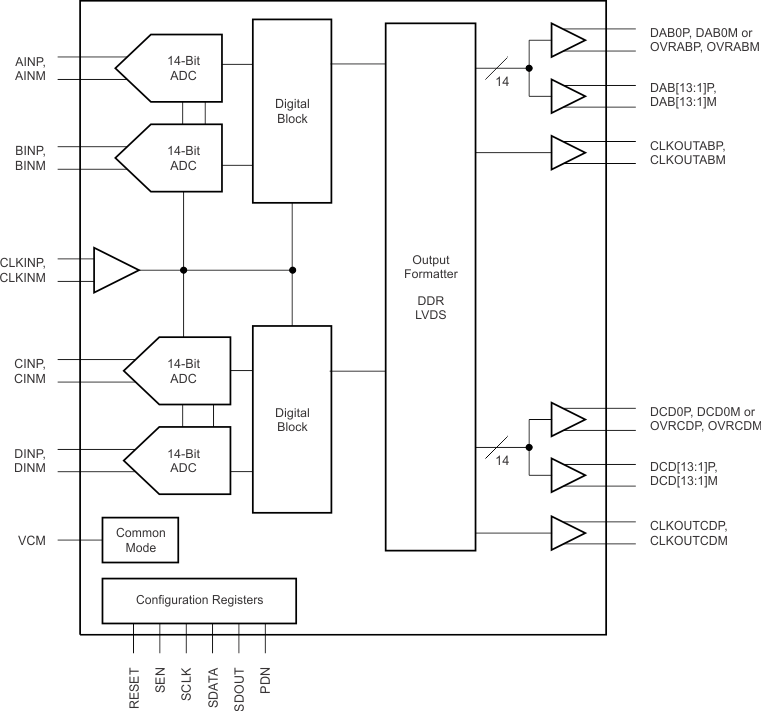

The ADS4449 is a high-linearity, quad-channel, 14-bit, 250-MSPS, analog-to-digital converter (ADC). Designed for low power consumption and high spurious-free dynamic range (SFDR), the device has low-noise performance and outstanding SFDR over a large input frequency range. spacer spacer The ADS4449 is a high-linearity, quad-channel, 14-bit, 250-MSPS, analog-to-digital converter (ADC). Designed for low power consumption and high spurious-free dynamic range (SFDR), the device has low-noise performance and outstanding SFDR over a large input frequency range. spacer spacer
