ADC32J23 Series
Manufacturer: Texas Instruments
Beta
⌘K

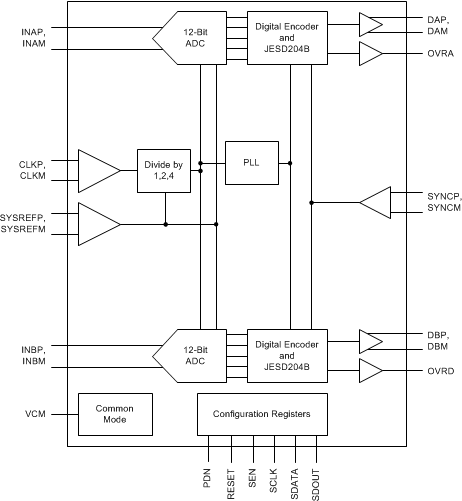

DUAL-CHANNEL, 12-BIT, 80-MSPS ANALOG-TO-DIGITAL CONVERTER (ADC)
| Part | Number of Bits | Mounting Type | Package / Case | Package Length | Package Name | Package Width | Reference Type | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | Sampling Rate (Per Second) | Number of A/D Converters | Input Type | Configuration | Data Interface | Features | Architecture | Voltage - Supply, Digital (Min) | Voltage - Supply, Digital (Max) | Number of Inputs | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 12 bits | Surface Mount | 48-VFQFN Exposed Pad | 7 mm | 48-VQFN | 7 mm | |||||||||||||||
 Texas Instruments | 12 bits | Surface Mount | 48-VFQFN Exposed Pad | 7 mm | 48-VQFN | 7 mm | External Internal | 1.9 V | 1.7 V | 80 MHz | 2 count | Differential | ADC | JESD204B | Simultaneous Sampling | Pipelined | 1.7 V | 1.9 V | 2 | -40 °C | 85 °C |
