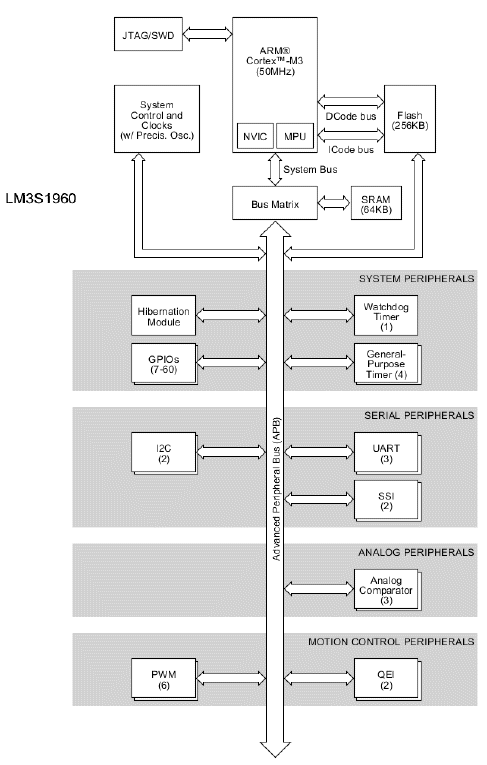

LM3S1960 Series

Catalog

IC MCU 32BIT 256KB FLASH 100LQFP

Part	Core Size (Bit Width)	Core Configuration	Operating Temperature (Max)	Operating Temperature (Min)	Speed	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	RAM Size Depth	RAM Size Width	Peripherals	Package Width	Package Name	Package Length	Number of I/O	Oscillator Type	Connectivity	Core Processor	Mounting Type	Package / Case	Program Memory Width	Program Memory Depth	Program Memory Size	Program Memory Type
Texas Instruments LM3S1960-EQC50-A2T	32 Bit	Single-Core	105 °C	-40 °C	50 MHz	2.25 V	2.75 V	64 K	8 bit	Brown-out Detect POR PWM Reset WDT	14 mm	100-LQFP	14 mm	60	Internal	I2C IrDA Microwire QEI SPI SSI UART USART	ARM® Cortex®-M3	Surface Mount	100-LQFP	8 bit	256 K	256 KB	FLASH
Texas Instruments LM3S1960-IBZ50-A2T	32 Bit	Single-Core	85 °C	-40 °C	50 MHz	2.25 V	2.75 V	64 K	8 bit	Brown-out Detect POR PWM Reset WDT	10 mm	108-BGA	10 mm	60	Internal	I2C IrDA Microwire QEI SPI SSI UART USART	ARM® Cortex®-M3	Surface Mount	108-LFBGA	8 bit	256 K	256 KB	FLASH
Texas Instruments LM3S1960-IQC50-A2T	32 Bit	Single-Core	85 °C	-40 °C	50 MHz	2.25 V	2.75 V	64 K	8 bit	Brown-out Detect POR PWM Reset WDT	14 mm	100-LQFP	14 mm	60	Internal	I2C IrDA Microwire QEI SPI SSI UART USART	ARM® Cortex®-M3	Surface Mount	100-LQFP	8 bit	256 K	256 KB	FLASH
Texas Instruments LM3S1960-IQC50-A2	32 Bit	Single-Core	85 °C	-40 °C	50 MHz	2.25 V	2.75 V	64 K	8 bit	Brown-out Detect POR PWM Reset WDT	14 mm	100-LQFP	14 mm	60	Internal	I2C IrDA Microwire QEI SPI SSI UART USART	ARM® Cortex®-M3	Surface Mount	100-LQFP	8 bit	256 K	256 KB	FLASH
Texas Instruments LM3S1960-EQC50-A2	32 Bit	Single-Core	105 °C	-40 °C	50 MHz	2.25 V	2.75 V	64 K	8 bit	Brown-out Detect POR PWM Reset WDT	14 mm	100-LQFP	14 mm	60	Internal	I2C IrDA Microwire QEI SPI SSI UART USART	ARM® Cortex®-M3	Surface Mount	100-LQFP	8 bit	256 K	256 KB	FLASH
Texas Instruments LM3S1960-IBZ50-A2	32 Bit	Single-Core	85 °C	-40 °C	50 MHz	2.25 V	2.75 V	64 K	8 bit	Brown-out Detect POR PWM Reset WDT	10 mm	108-BGA	10 mm	60	Internal	I2C IrDA Microwire QEI SPI SSI UART USART	ARM® Cortex®-M3	Surface Mount	108-LFBGA	8 bit	256 K	256 KB	FLASH
