LP3964 Series

800-mA, low-dropout voltage regulator with enable & sense

Catalog

800-mA, low-dropout voltage regulator with enable & sense

Part	Control Features	Current - Output	Current - Quiescent (Iq)	Mounting Type	Voltage - Output (Min/Fixed)	Voltage - Output (Max)	Package Name	Voltage Dropout (Max)	Operating Temperature (Max)	Operating Temperature (Min)	Output Configuration	Output Type	Package / Case	Current - Supply (Max)	Voltage - Input (Max)	Number of Regulators	Protection Features	Package Leads
Texas Instruments LP3964ET-ADJ/NOPB	Enable	800 mA	9 mA	Through Hole	1.216 V	5.1 V	TO-220-5	0.35 V	125 °C	-40 °C	Positive	Adjustable	TO-220-5 Formed Leads	15 mA	7 V	1	Over Current Over Temperature Short Circuit
Texas Instruments LP3964ES-2.5	Enable	800 mA	9 mA	Surface Mount	2.5 V		D2PAK TO-263 (DDPAK-5)	0.35 V	125 °C	-40 °C	Positive	Fixed		15 mA	7 V	1	Over Current Over Temperature Short Circuit	5 Leads
Texas Instruments LP3964ES-2.5		800 mA	10 mA	Surface Mount	2.5 V		D2PAK TO-263 (DDPAK-5)	0.35 V	125 °C	-40 °C	Positive	Fixed		15 mA	7 V	1	Over Current Over Temperature Short Circuit	5 Leads
Texas Instruments LP3964ESX-3.3/NOPB	Enable	800 mA	9 mA	Surface Mount	3.3 V		D2PAK TO-263 (DDPAK-5)	0.35 V	125 °C	-40 °C	Positive	Fixed		15 mA	7 V	1	Over Current Over Temperature Short Circuit	5 Leads
Texas Instruments LP3964ESX-ADJ	Enable	800 mA	9 mA	Surface Mount	1.216 V	5.1 V	D2PAK TO-263 (DDPAK-5)	0.35 V	125 °C	-40 °C	Positive	Adjustable		15 mA	7 V	1	Over Current Over Temperature Short Circuit	5 Leads
Texas Instruments LP3964EMPX-2.5	Enable	800 mA	9 mA	Surface Mount	2.5 V		SOT-223-5	0.35 V	125 °C	-40 °C	Positive	Fixed	TO-261-5 TO-261AB	15 mA	7 V	1	Over Current Over Temperature Short Circuit
Texas Instruments LP3964ES-1.8	Enable	800 mA	9 mA	Surface Mount	1.8 V		D2PAK TO-263 (DDPAK-5)	0.35 V	125 °C	-40 °C	Positive	Fixed		15 mA	7 V	1	Over Current Over Temperature Short Circuit	5 Leads
Texas Instruments LP3964ES-2.5/NOPB	Enable	800 mA	9 mA	Surface Mount	2.5 V		D2PAK TO-263 (DDPAK-5)	0.35 V	125 °C	-40 °C	Positive	Fixed		15 mA	7 V	1	Over Current Over Temperature Short Circuit	5 Leads
Texas Instruments LP3964ESX-3.3	Enable	800 mA	9 mA	Surface Mount	3.3 V		D2PAK TO-263 (DDPAK-5)	0.35 V	125 °C	-40 °C	Positive	Fixed		15 mA	7 V	1	Over Current Over Temperature Short Circuit	5 Leads
Texas Instruments LP3964EMP-2.5	Enable	800 mA	9 mA	Surface Mount	2.5 V		SOT-223-5	0.35 V	125 °C	-40 °C	Positive	Fixed	TO-261-5 TO-261AB	15 mA	7 V	1	Over Current Over Temperature Short Circuit

Catalog

800-mA, low-dropout voltage regulator with enable & sense

Description

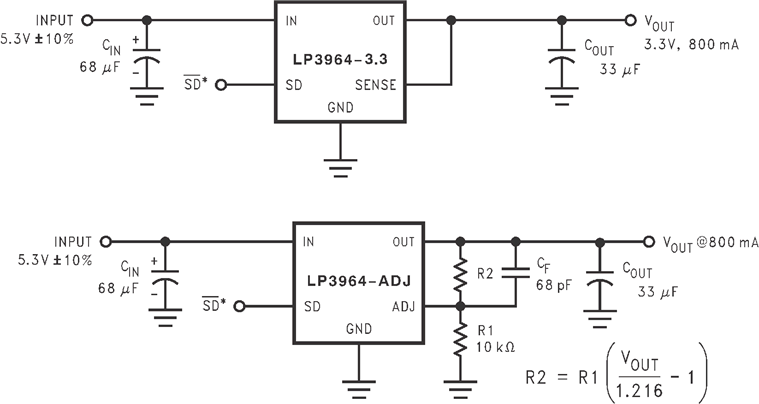

The LP396x series of fast ultra-low-dropout linear regulators operate from a 2.5-V to 7-V input supply. A wide range of preset output voltage options are available. These ultra-low dropout linear regulators respond very fast to step changes in load which makes them suitable for low-voltage microprocessor applications. The LP3961 and LP3964 are developed on a CMOS process which allows low quiescent current operation independent of output load current, as well as operation under extremely low dropout conditions. Dropout Voltage:Ultra-low dropout voltage; typically 24 mV at 80-mA load current and 240 mV at 800-mA load current. Ground Pin Current:Typically 4 mA at 800-mA load current. ERRORFlag:ERRORflag goes low when the output voltage drops 10% below nominal value (for LP3961). SENSE:SENSE pin improves regulation at remote loads (for LP3964). Precision Output Voltage:Multiple output voltage options are available ranging from 1.2 V to 5 V and adjustable (LP3964), with a specified accuracy of ±1.5% at room temperature, and ±3% over all conditions (varying line, load, and temperature). The LP396x series of fast ultra-low-dropout linear regulators operate from a 2.5-V to 7-V input supply. A wide range of preset output voltage options are available. These ultra-low dropout linear regulators respond very fast to step changes in load which makes them suitable for low-voltage microprocessor applications. The LP3961 and LP3964 are developed on a CMOS process which allows low quiescent current operation independent of output load current, as well as operation under extremely low dropout conditions. Dropout Voltage:Ultra-low dropout voltage; typically 24 mV at 80-mA load current and 240 mV at 800-mA load current. Ground Pin Current:Typically 4 mA at 800-mA load current. ERRORFlag:ERRORflag goes low when the output voltage drops 10% below nominal value (for LP3961). SENSE:SENSE pin improves regulation at remote loads (for LP3964). Precision Output Voltage:Multiple output voltage options are available ranging from 1.2 V to 5 V and adjustable (LP3964), with a specified accuracy of ±1.5% at room temperature, and ±3% over all conditions (varying line, load, and temperature).
