LM5064 Series

Catalog

BOARD EVAL FOR LM5064

Part	Supplied Contents	Function	Contents	Type	Utilized IC / Part	Secondary Attributes ({{qualifier}}) - Minimum	Secondary Attributes ({{qualifier}}) - Maximum	Secondary Attributes (Supply) - Maximum	Secondary Attributes (Supply) - Minimum	Supply Voltage (Minimum)	Supply Voltage (Maximum)	Embedded	Applications	Current - Supply	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Internal Switch(s)	Features	Package Width	Package Name	Package Length	Programmable Features	Number of Channels	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type
Texas Instruments LM5064EVK/NOPB	Board(s)	Hot Swap Controller	Board	Power Management	LM5064	-36 V	-60 V	-60 V	-36 V	-36 V	-60 V	No

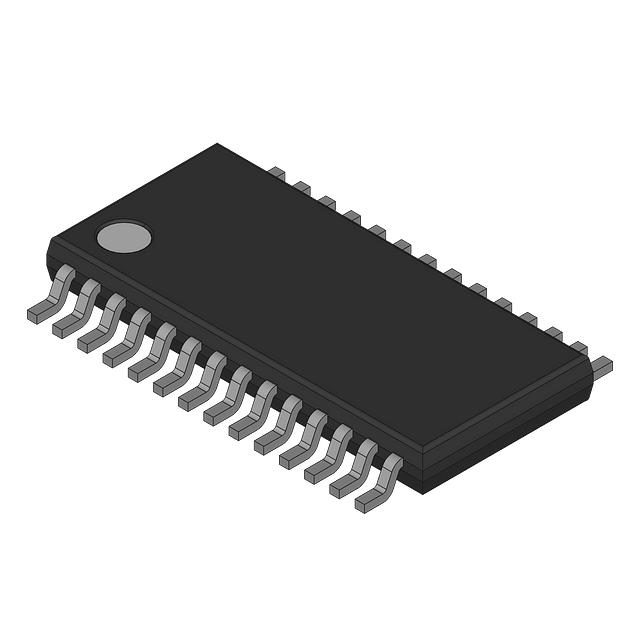

Texas Instruments LM5064PMH/NOPB				Hot Swap Controller Monitor									-48V	6 mA	-80 V	-10 V	No	PMBus	4.4 mm	28-HTSSOP 28-PowerTSSOP	0.173 in	Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO	1	125 °C	-40 °C	Surface Mount
Texas Instruments LM5064PMHX/NOPB				Hot Swap Controller Monitor									-48V	6 mA	-80 V	-10 V	No	PMBus	4.4 mm	28-HTSSOP 28-PowerTSSOP	0.173 in	Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO	1	125 °C	-40 °C	Surface Mount
Texas Instruments LM5064PMHE/NOPB				Hot Swap Controller Monitor									-48V	6 mA	-80 V	-10 V	No	PMBus	4.4 mm	28-HTSSOP 28-PowerTSSOP	0.173 in	Auto Retry Circuit Breaker Current Limit Fault Timeout Latched Fault OVP Thermal Limit UVLO	1	125 °C	-40 °C	Surface Mount
Texas Instruments LM5064UPMH/NOPB
