LM10502 Series

2MHz, 1A/1A Dual Step-Down Converters + Low-Dropout Linear Regulator

Catalog

2MHz, 1A/1A Dual Step-Down Converters + Low-Dropout Linear Regulator

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Max)	Operating Temperature (Min)	Current - Supply	Applications	Package Name	Mounting Type	Package / Case
Texas Instruments LM10502TLX/NOPB	5.5 V	3 V	85 °C	-30 °C	60 µA	Solid State Drives (SSD)	25-DSBGA	Surface Mount	25-WFBGA DSBGA
Texas Instruments LM10502TLE/NOPB	5.5 V	3 V	85 °C	-30 °C	60 µA	Solid State Drives (SSD)	25-DSBGA	Surface Mount	25-WFBGA DSBGA

Catalog

2MHz, 1A/1A Dual Step-Down Converters + Low-Dropout Linear Regulator

Description

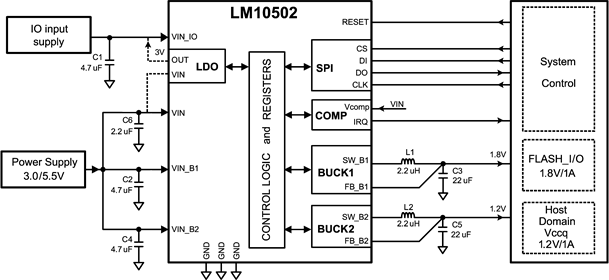

The LM10502 are advanced PMUs each containing two configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for Solid-State and Flash drives. The LM10502 operate cooperatively with the application ASIC to optimize the supply voltage for low-power conditions and Power Saving modes via the SPI interface. It also supports a 250 mA LDO and a programmable Interrupt Comparator to monitor VIN. The LM10502 are advanced PMUs each containing two configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for Solid-State and Flash drives. The LM10502 operate cooperatively with the application ASIC to optimize the supply voltage for low-power conditions and Power Saving modes via the SPI interface. It also supports a 250 mA LDO and a programmable Interrupt Comparator to monitor VIN.
