OPA1S2384 Series

Catalog

250-MHZ, CMOS TRANSIMPEDANCE AMPLIFIER (TIA) WITH INTEGRATED SWITCH AND BUFFER

Part	Package Width	Package Name	Package Length	Number of Circuits	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Gain Bandwidth Product	Package / Case	-3db Bandwidth	Amplifier Type	Voltage - Supply Span (Max)	Voltage - Supply Span (Min)	Current - Output / Channel	Current - Supply	Current - Input Bias	Output Type	Voltage - Input Offset	Slew Rate	Board Type	Supplied Contents	Current - Supply (Main IC)	Channels per IC (Dual)	Channels per IC (Type)	Channels per IC (Count)	Utilized IC / Part	Supply Configuration	Voltage - Supply (Single) Minimum	Voltage - Supply (Dual) Maximum (Magnitude)	Voltage - Supply (Single) Maximum	Voltage - Supply (Dual) Minimum (Magnitude)	Contents
Texas Instruments OPA1S2384IDRCT	3 mm	10-VSON	3 mm	2	Surface Mount	-40 °C	85 °C	100 MHz	10-VFDFN Exposed Pad	250 MHz	Transimpedance	5.5 V	2.7 V	100 mA	9.2 mA	3 pA	Rail-to-Rail	2 mV	150 V/µs

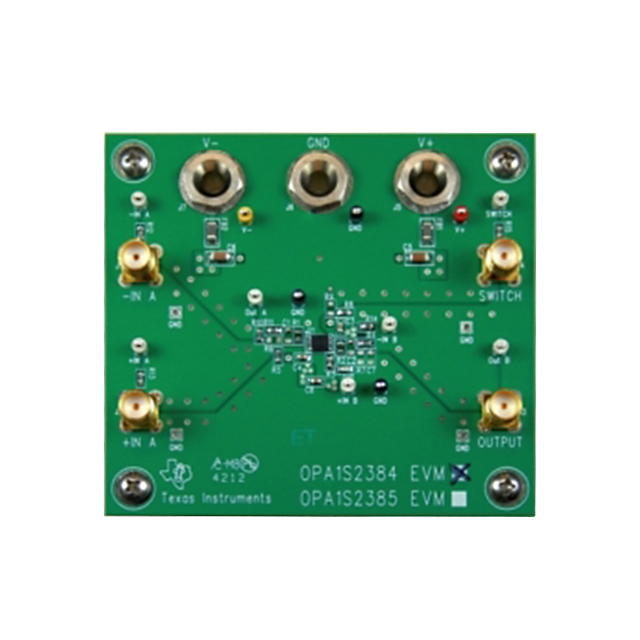

Texas Instruments OPA1S2384EVM								100 MHz		250 MHz	Transimpedance			100 mA			Rail-to-Rail Single-Ended		150 V/µs	Fully Populated	Board(s)	0.0092 mA	2	Dual	2	OPA1S2384	Dual Single	2.7 V	2.75 V	5.5 V	1.35 V	Board
Texas Instruments OPA1S2384IDRCR	3 mm	10-VSON	3 mm	2	Surface Mount	-40 °C	85 °C	100 MHz	10-VFDFN Exposed Pad	250 MHz	Transimpedance	5.5 V	2.7 V	100 mA	9.2 mA	3 pA	Rail-to-Rail	2 mV	150 V/µs
