SCAN15MB200 Series

Catalog

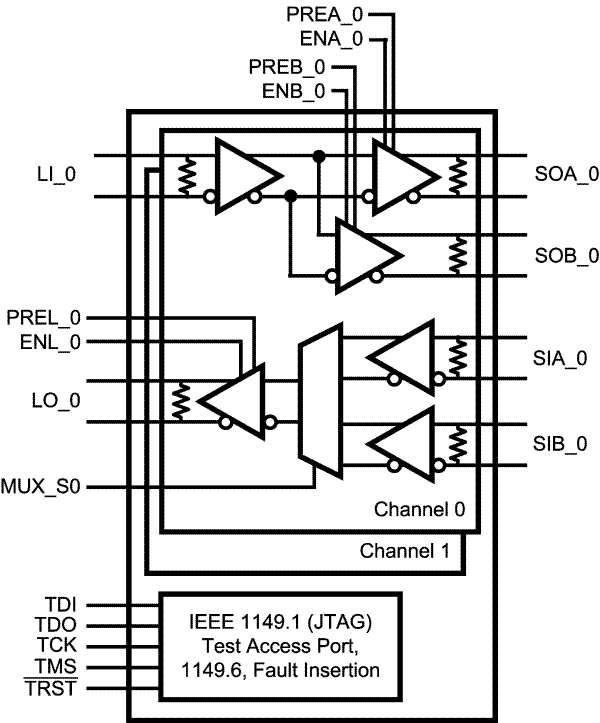

DUAL 1.5-GBPS 2:1/1:2 LVDS MUX/BUFFER WITH PRE-EMPHASIS AND IEEE 1149.6

Part	Channel Configuration	Number of Channels	Delay Time	Output	Current - Supply	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Type	Package Width	Package Name	Package Length	Input	Applications	Capacitance - Input	Signal Conditioning	Data Rate (Max)	Package / Case	Mounting Type
Texas Instruments SCAN15MB200TSQX/NOPB	1:2 2:1	2	1 ns	LVDS	225 mA	3.6 V	3 V	-40 °C	85 °C	Buffer Multiplexer	7 mm	48-WQFN	7 mm	CML LVDS LVPECL	LVDS	2 pF	Output Pre-Emphasis	1.5 Gbps	48-WFQFN Exposed Pad	Surface Mount
Texas Instruments SCAN15MB200TSQ/NOPB	1:2 2:1	2	1 ns	LVDS	225 mA	3.6 V	3 V	-40 °C	85 °C	Buffer Multiplexer	7 mm	48-WQFN	7 mm	CML LVDS LVPECL	LVDS	2 pF	Output Pre-Emphasis	1.5 Gbps	48-WFQFN Exposed Pad	Surface Mount
