DAC8571 Series
Manufacturer: Texas Instruments
Beta
⌘K
DIGITAL TO ANALOG CONVERTERS - DAC LO-PWR R-TO-R OUTPUT 16-BIT I2C INPUT A 595-DAC8571IDGKR
| Part | Voltage - Supply, Digital (Min) | Voltage - Supply, Digital (Max) | Output Type | Architecture | Operating Temperature (Min) | Operating Temperature (Max) | Reference Type | Settling Time | Differential Output | Package Name | Package Width | Package Length | Mounting Type | Voltage - Supply, Analog (Min) | Voltage - Supply, Analog (Max) | Data Interface | INL/DNL (LSB) (Max) | INL/DNL (LSB) Tolerance | Number of D/A Converters | Number of Bits | Supplied Contents | Utilized IC / Part | Contents | Number of DAC's | Sampling Rate (Per Second) | DAC Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 2.7 V | 5.5 V | Voltage - Buffered | String DAC | -40 °C | 105 °C | External | 15 µs | No | 8-TSSOP 8-MSOP 8-VSSOP | 3 mm | 0.118 in | Surface Mount | 2.7 V | 5.5 V | I2C | 0.25 LSB | 0.25 LSB | 1 count | 16 bits | ||||||
 Texas Instruments | 2.7 V | 5.5 V | Voltage - Buffered | String DAC | -40 °C | 105 °C | External | 15 µs | No | 8-TSSOP 8-MSOP 8-VSSOP | 3 mm | 0.118 in | Surface Mount | 2.7 V | 5.5 V | I2C | 0.25 LSB | 0.25 LSB | 1 count | 16 bits | ||||||
 Texas Instruments | 2.7 V | 5.5 V | Voltage - Buffered | String DAC | -40 °C | 105 °C | External | 15 µs | No | 8-TSSOP 8-MSOP 8-VSSOP | 3 mm | 0.118 in | Surface Mount | 2.7 V | 5.5 V | I2C | 0.25 LSB | 0.25 LSB | 1 count | 16 bits | ||||||
Texas Instruments | 2.7 V | 5.5 V | Voltage - Buffered | String DAC | -40 °C | 105 °C | External | 15 µs | No | 8-TSSOP 8-MSOP 8-VSSOP | 3 mm | 0.118 in | Surface Mount | 2.7 V | 5.5 V | I2C | 0.25 LSB | 0.25 LSB | 1 count | 16 bits | ||||||

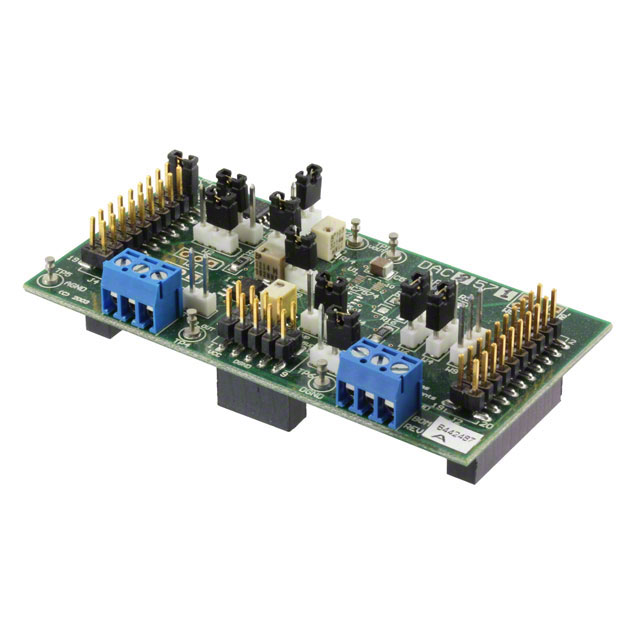

 Texas Instruments | 8 µs | I2C | 16 bits | Board(s) | DAC8571 | Board | 1 | 52 kHz | Voltage |
