ADS8327 Series

2.7V-to-5.5V 16-Bit 500kSPS Serial Analog-to-Digital Converter (ADC)

Catalog

2.7V-to-5.5V 16-Bit 500kSPS Serial Analog-to-Digital Converter (ADC)

Part	Data Interface	Number of Bits	Configuration	Package / Case	Architecture	Mounting Type	Input Type	Package Width	Package Name	Package Length	Voltage - Supply, Analog	Sampling Rate (Per Second)	Number of Inputs	Ratio - ADC	Ratio - S/H	Operating Temperature (Min)	Operating Temperature (Max)	Number of A/D Converters	Reference Type	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)
Texas Instruments ADS8327IRSAR	SPI	16 bits	S/H-ADC	16-VQFN Exposed Pad	SAR	Surface Mount	Differential Single Ended	4 mm	16-QFN	4 mm	5 V	500 kHz	1	1	1	-40 °C	85 °C	1 count	External	5.5 V	1.65 V
Texas Instruments ADS8327IPW	SPI	16 bits	S/H-ADC		SAR	Surface Mount	Differential Single Ended	4.4 mm	16-TSSOP	0.173 in	5 V	500 kHz	1	1	1	-40 °C	85 °C	1 count	External	5.5 V	1.65 V
Texas Instruments ADS8327IPWR	SPI	16 bits	S/H-ADC		SAR	Surface Mount	Differential Single Ended	4.4 mm	16-TSSOP	0.173 in	5 V	500 kHz	1	1	1	-40 °C	85 °C	1 count	External	5.5 V	1.65 V
Texas Instruments ADS8327IBPWG4	SPI	16 bits	S/H-ADC		SAR	Surface Mount	Differential Single Ended	4.4 mm	16-TSSOP	0.173 in	5 V	500 kHz	1	1	1	-40 °C	85 °C	1 count	External	5.5 V	1.65 V
Texas Instruments ADS8327IBRSAR	SPI	16 bits	S/H-ADC	16-VQFN Exposed Pad	SAR	Surface Mount	Differential Single Ended	4 mm	16-QFN	4 mm	5 V	500 kHz	1	1	1	-40 °C	85 °C	1 count	External	5.5 V	1.65 V
Texas Instruments ADS8327IBPW	SPI	16 bits	S/H-ADC		SAR	Surface Mount	Differential Single Ended	4.4 mm	16-TSSOP	0.173 in	5 V	500 kHz	1	1	1	-40 °C	85 °C	1 count	External	5.5 V	1.65 V
Texas Instruments ADS8327IBPWR	SPI	16 bits	S/H-ADC		SAR	Surface Mount	Differential Single Ended	4.4 mm	16-TSSOP	0.173 in	5 V	500 kHz	1	1	1	-40 °C	85 °C	1 count	External	5.5 V	1.65 V
Texas Instruments ADS8327IBRSAT	SPI	16 bits	S/H-ADC	16-VQFN Exposed Pad	SAR	Surface Mount	Differential Single Ended	4 mm	16-QFN	4 mm	5 V	500 kHz	1	1	1	-40 °C	85 °C	1 count	External	5.5 V	1.65 V
Texas Instruments ADS8327IRSAT	SPI	16 bits	S/H-ADC	16-VQFN Exposed Pad	SAR	Surface Mount	Differential Single Ended	4 mm	16-QFN	4 mm	5 V	500 kHz	1	1	1	-40 °C	85 °C	1 count	External	5.5 V	1.65 V

Catalog

2.7V-to-5.5V 16-Bit 500kSPS Serial Analog-to-Digital Converter (ADC)

Description

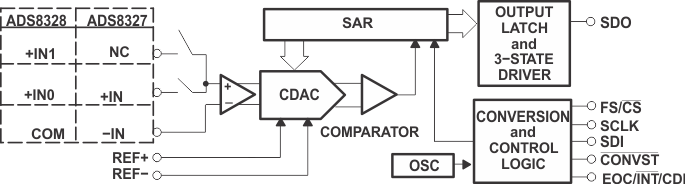

The ADS8327 is a low power, 16-bit, 500-kSPS analog-to-digital converter with a unipolar input. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8328 is based on the same core and includes a 2-to-1 input MUX with programmable option of TAG bit output. Both the ADS8327 and ADS8328 offer a high-speed, wide voltage serial interface and are capable of chain mode operation when multiple converters are used. These converters are available in a 16-lead TSSOP or 4×4 QFN packages and are fully specified for operation over the industrial –40°C to +85°C temperature range. The ADS8327 is a low power, 16-bit, 500-kSPS analog-to-digital converter with a unipolar input. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8328 is based on the same core and includes a 2-to-1 input MUX with programmable option of TAG bit output. Both the ADS8327 and ADS8328 offer a high-speed, wide voltage serial interface and are capable of chain mode operation when multiple converters are used. These converters are available in a 16-lead TSSOP or 4×4 QFN packages and are fully specified for operation over the industrial –40°C to +85°C temperature range.
