DAC8820 Series

Catalog

16-BIT, PARALLEL INPUT MULTIPLYING DAC

Part	Mounting Type	Settling Time (Typical)	INL (Max) (LSB)	DNL (LSB) Tolerance	DNL (Max) (LSB)	Output Type	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Reference Type	Number of Bits	Differential Output	Number of D/A Converters	Package Name	Package Width	Package Length	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Architecture	Data Interface	DNL (LSB)	Supplied Contents	Settling Time	DAC Type	Number of DAC's	Utilized IC / Part	Contents
Texas Instruments DAC8820IBDB	Surface Mount	500 ns	2 LSB	0.5 LSB	0.5 LSB	Current - Unbuffered	2.7 V	5.5 V	External	16 bits	No	1 count	28-SSOP	5.3 mm	0.209 in	2.7 V	5.5 V	-40 °C -40 C	85 °C 85 C	Multiplying DAC	Parallel	0.5 LSB

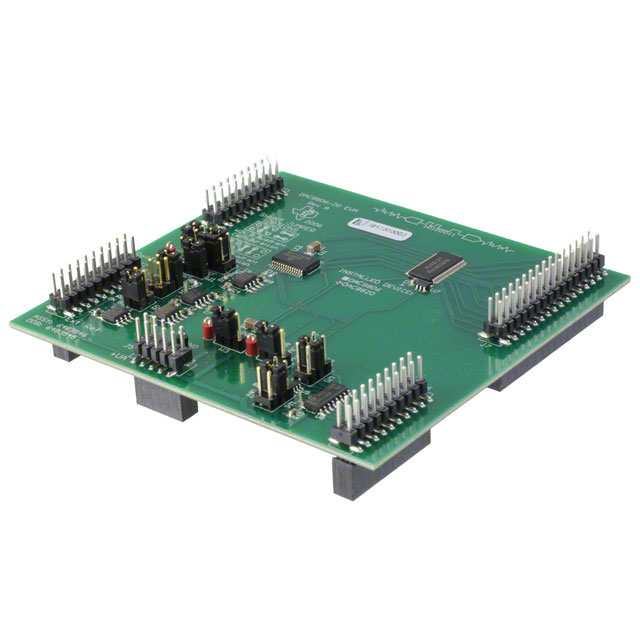

Texas Instruments DAC8820EVM										16 bits											Parallel		Board(s)	500 ns	Current	1	DAC8820	Board
Texas Instruments DAC8820ICDBG4	Surface Mount	500 ns	1 LSB	0.5 LSB	0.5 LSB	Current - Unbuffered	2.7 V	5.5 V	External	16 bits	No	1 count	28-SSOP	5.3 mm	0.209 in	2.7 V	5.5 V	-40 °C	85 °C	Multiplying DAC	Parallel
Texas Instruments DAC8820ICDB	Surface Mount	500 ns	1 LSB	0.5 LSB	0.5 LSB	Current - Unbuffered	2.7 V	5.5 V	External	16 bits	No	1 count	28-SSOP	5.3 mm	0.209 in	2.7 V	5.5 V	-40 °C	85 °C	Multiplying DAC	Parallel
Texas Instruments DAC8820IBDBR	Surface Mount	500 ns	2 LSB	0.5 LSB	0.5 LSB	Current - Unbuffered	2.7 V	5.5 V	External	16 bits	No	1 count	28-SSOP	5.3 mm	0.209 in	2.7 V	5.5 V	-40 °C	85 °C	Multiplying DAC	Parallel
Texas Instruments DAC8820ICDBR	Surface Mount	500 ns	1 LSB	0.5 LSB	0.5 LSB	Current - Unbuffered	2.7 V	5.5 V	External	16 bits	No	1 count	28-SSOP	5.3 mm	0.209 in	2.7 V	5.5 V	-40 °C	85 °C	Multiplying DAC	Parallel
