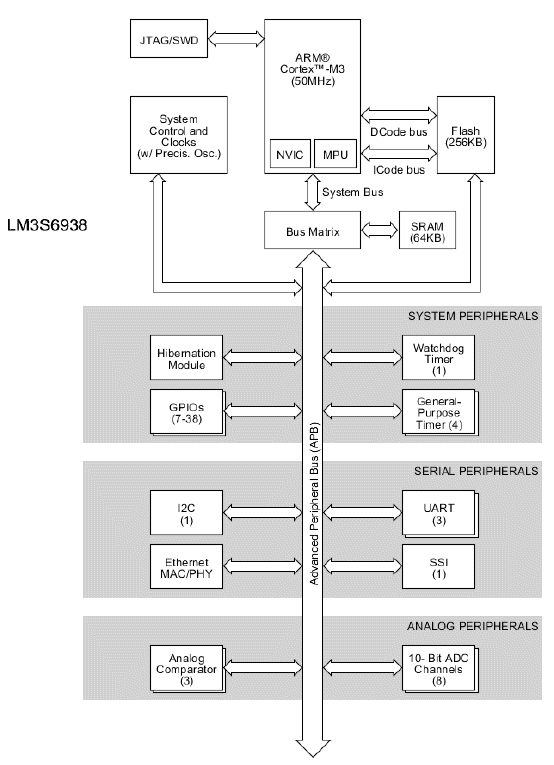

LM3S6938 Series

Catalog

IC MCU 32BIT 256KB FLASH 100LQFP

Part	Core Size (Bit Width)	Oscillator Type	Operating Temperature (Max)	Operating Temperature (Min)	Speed	Package Width	Package Name	Package Length	RAM Size Depth	RAM Size Width	Program Memory Width	Program Memory Depth	Program Memory Size	Mounting Type	Program Memory Type	Number of I/O	Peripherals	Connectivity	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Core Processor	Package / Case	A/D Channels	A/D Resolution (bits)	Core Configuration
Texas Instruments LM3S6938-IQC50-A2T	32 Bit	Internal	85 °C	-40 °C	50 MHz	14 mm	100-LQFP	14 mm	64 K	8 bit	8 bit	256 K	256 KB	Surface Mount	FLASH	38	Brown-out Detect POR PWM Reset WDT	Ethernet I2C IrDA Microwire SPI SSI UART USART	2.25 V	2.75 V	ARM® Cortex®-M3	100-LQFP	8 count	10 bit	Single-Core
Texas Instruments LM3S6938-IBZ50-A2	32 Bit	Internal	85 °C	-40 °C	50 MHz	10 mm	108-BGA	10 mm	64 K	8 bit	8 bit	256 K	256 KB	Surface Mount	FLASH	38	Brown-out Detect POR PWM Reset WDT	Ethernet I2C IrDA Microwire SPI SSI UART USART	2.25 V	2.75 V	ARM® Cortex®-M3	108-LFBGA	8 count	10 bit	Single-Core
Texas Instruments LM3S6938-EQC50-A2T	32 Bit	Internal	105 °C	-40 °C	50 MHz	14 mm	100-LQFP	14 mm	64 K	8 bit	8 bit	256 K	256 KB	Surface Mount	FLASH	38	Brown-out Detect POR PWM Reset WDT	Ethernet I2C IrDA Microwire SPI SSI UART USART	2.25 V	2.75 V	ARM® Cortex®-M3	100-LQFP	8 count	10 bit	Single-Core
Texas Instruments LM3S6938-IQC50-A2	32 Bit	Internal	85 °C	-40 °C	50 MHz	14 mm	100-LQFP	14 mm	64 K	8 bit	8 bit	256 K	256 KB	Surface Mount	FLASH	38	Brown-out Detect POR PWM Reset WDT	Ethernet I2C IrDA Microwire SPI SSI UART USART	2.25 V	2.75 V	ARM® Cortex®-M3	100-LQFP	8 count	10 bit	Single-Core
Texas Instruments LM3S6938-IBZ50-A2	32 Bit	Internal	85 °C	-40 °C	50 MHz	10 mm	108-BGA	10 mm	64 K	8 bit	8 bit	256 K	256 KB	Surface Mount	FLASH	38	Brown-out Detect POR PWM Reset WDT	Ethernet I2C IrDA Microwire SPI SSI UART USART	2.25 V	2.75 V	ARM® Cortex®-M3	108-LFBGA	8 count	10 bit
