CSD87351 Series

30-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 32 A

Catalog

30-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 32 A

Part	Power - Max	Current - Continuous Drain (Id)	Channel Count	Configuration	Configuration - Features	Drain to Source Voltage (Vdss)	Package / Case	FET Feature	Input Capacitance (Ciss) (Max)	Gate Charge (Max)	Vgs(th) (Max)	Mounting Type	Package Name	Package Length	Package Width	Operating Temperature (Min)	Operating Temperature (Max)	Technology	Rds On (Max)
Texas Instruments CSD87351ZQ5D	12 W	32 A	2	Asymmetrical N-Channel	Dual	30 V	8-PowerLDFN	Logic Level Gate	1255 pF	7.7 nC	2.1 V	Surface Mount	8-LSON	5 mm	6 mm	-55 °C	150 °C	MOSFET (Metal Oxide)
Texas Instruments CSD87351Q5D	12 W	32 A	2	N-Channel	Dual	30 V	8-PowerLDFN	Logic Level Gate	1255 pF	7.7 nC	2.1 V	Surface Mount	8-LSON	5 mm	6 mm	-55 °C	150 °C	MOSFET (Metal Oxide)	7.6 mOhm

Catalog

30-V, N channel synchronous buck NexFET™ power MOSFET, SON 5 mm x 6 mm power block, 32 A

Description

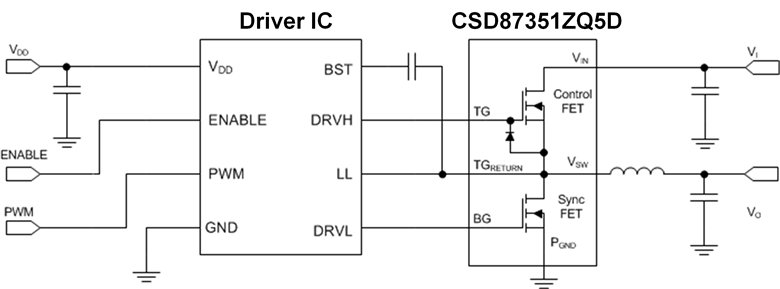

The CSD87351ZQ5D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 5-mm × 6-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver. The CSD87351ZQ5D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 5-mm × 6-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver.
