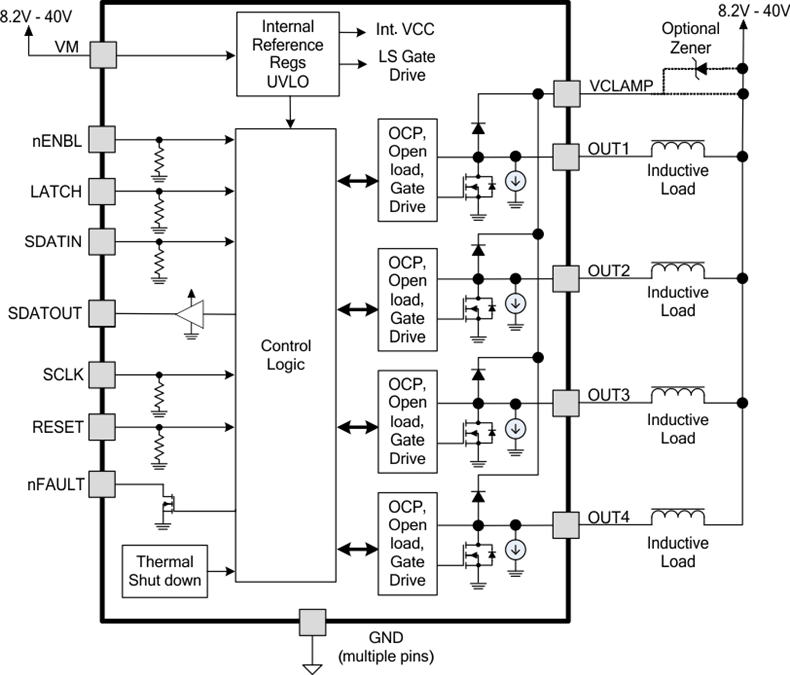

DRV8806 Series
Manufacturer: Texas Instruments
Beta
⌘K
MOTOR / MOTION / IGNITION CONTROLLERS & DRIVERS 2.0A UNIPOLAR STEP- PER MOTOR A 595-DRV8806PWPR
| Part | Applications | Low-Side Count | Output Configuration | Technology | Operating Temperature (Min) | Operating Temperature (Max) | Package Name | Mounting Type | Motor Type - Stepper | Interface | Function | Current - Output | Motor Type - AC, DC | Voltage - Load (Max) | Voltage - Load (Min) | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Package Length | Package Width | Supplied Contents | Primary Attributes | Type | Secondary Attributes | Utilized IC / Part | Contents | Embedded Bit Width | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | General Purpose | 4 | Low Side | Power MOSFET | -40 °C | 150 °C | 16-HTSSOP 16-PowerTSSOP | Surface Mount | Unipolar | SPI | Control and Power Stage Driver - Fully Integrated | 2 A | Brushed DC | 40 V | 8.2 V | 40 VAC | 8.2 V | 0.173 in | 4.4 mm | ||||||||
 Texas Instruments | General Purpose | 4 | Low Side | Power MOSFET | -40 °C | 150 °C | 16-HTSSOP 16-PowerTSSOP | Surface Mount | Unipolar | SPI | Control and Power Stage Driver - Fully Integrated | 2 A | Brushed DC | 40 V | 8.2 V | 40 VAC | 8.2 V | 0.173 in | 4.4 mm | ||||||||
 Texas Instruments | Driver Motor Controller | Board(s) | 4 Channel Low-Side Driver | Power Management | Serial Interface(s) | DRV8806 | Board | 16 bit | MCU Yes |
