LM5088 Series
Manufacturer: Texas Instruments
Beta
⌘K
AUTOMOTIVE GRADE 4.5-75V WIDE VIN, CURRENT MODE NON-SYNCHRONOUS BUCK CONTROLLER
| Part | Frequency - Switching (Min) | Frequency - Switching (Max) | Package Name | Function | Output Type | Control Features | Mounting Type | Number of Outputs | Package Length | Package Width | Output Configuration | Grade | Voltage - Supply (Vcc/Vdd) Maximum | Voltage - Supply (Vcc/Vdd) Minimum | Topology | Synchronous Rectifier | Operating Temperature (Max) | Operating Temperature (Min) | Clock Sync | Output Phases | Qualification | Total Output Count | Non-Isolated Output Count | Supplied Contents | Board Type | Contents | Voltage - Output | Main Purpose | Current - Output | Voltage - Input (Maximum) | Voltage - Input (Minimum) | Utilized IC / Part | Regulator Topology | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 50 kHz | 1 MHz | 16-HTSSOP 16-PowerTSSOP | Step-Down | Transistor Driver | Enable Frequency Control Ramp Soft Start | Surface Mount | 1 | 0.173 in | 4.4 mm | Positive | Automotive | 75 V | 4.5 V | Buck | No | 125 °C | -40 °C | Yes | 1 | AEC-Q100 | |||||||||||||
Texas Instruments | 50 kHz | 1 MHz | 16-HTSSOP 16-PowerTSSOP | Step-Down | Transistor Driver | Enable Frequency Control Ramp Soft Start | Surface Mount | 1 | 0.173 in | 4.4 mm | Positive | Automotive | 75 V | 4.5 V | Buck | No | 125 °C | -40 °C | Yes | 1 | AEC-Q100 | |||||||||||||

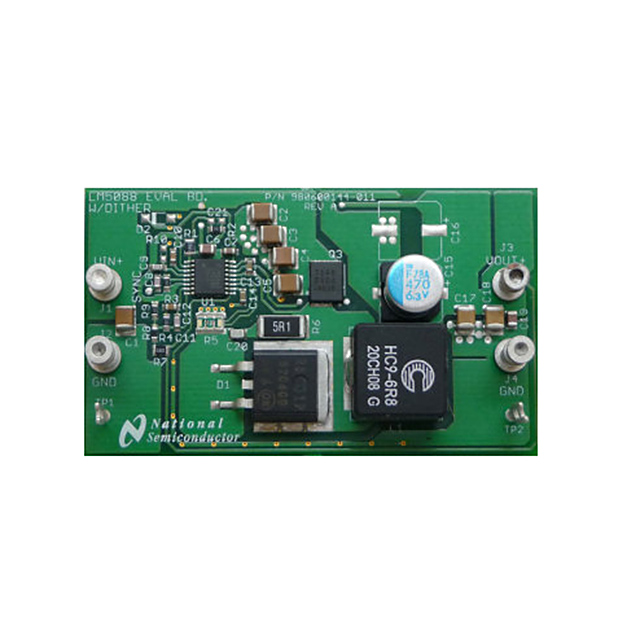

 Texas Instruments | Non-Isolated | 1 | 1 count | Board(s) | Fully Populated | Board | 5 VDC | DC/DC Step Down | 7 A | 55 V | 5.5 V | LM5088 | Buck | 250 kHz | ||||||||||||||||||||
 Texas Instruments | Non-Isolated | 1 | 1 count | Board(s) | Fully Populated | Board | 5 VDC | DC/DC Step Down | 7 A | 55 V 75 V | 4.5 V 5.5 V | LM5088 | Buck | 250 kHz | ||||||||||||||||||||
 Texas Instruments | 50 kHz | 1 MHz | 16-HTSSOP 16-PowerTSSOP | Step-Down | Transistor Driver | Enable Frequency Control Ramp Soft Start | Surface Mount | 1 | 0.173 in | 4.4 mm | Positive | Automotive | 75 V | 4.5 V | Buck | No | 125 °C | -40 °C | Yes | 1 | AEC-Q100 | |||||||||||||
 Texas Instruments | Non-Isolated | 1 | 1 count | Board(s) | Fully Populated | Board | 5 VDC | DC/DC Step Down | 7 A | 55 V | 5.5 V | LM5088 | Buck | 250 kHz | ||||||||||||||||||||
Texas Instruments | 50 kHz | 1 MHz | 16-HTSSOP 16-PowerTSSOP | Step-Down | Transistor Driver | Enable Frequency Control Ramp Soft Start | Surface Mount | 1 | 0.173 in | 4.4 mm | Positive | Automotive | 75 V | 4.5 V | Buck | No | 125 °C | -40 °C | Yes | 1 | AEC-Q100 | |||||||||||||
Texas Instruments | 50 kHz | 1 MHz | 16-HTSSOP 16-PowerTSSOP | Step-Down | Transistor Driver | Enable Frequency Control Ramp Soft Start | Surface Mount | 1 | 0.173 in | 4.4 mm | Positive | 75 V | 4.5 V | Buck | No | 125 °C | -40 °C | Yes | 1 | |||||||||||||||
 Texas Instruments | Non-Isolated | 1 | 1 count | Board(s) | Fully Populated | Board | 5 VDC | DC/DC Step Down | 7 A | 55 V | 5.5 V | LM5088 | Buck | 250 kHz | ||||||||||||||||||||
Texas Instruments | 50 kHz | 1 MHz | 16-HTSSOP 16-PowerTSSOP | Step-Down | Transistor Driver | Enable Frequency Control Ramp Soft Start | Surface Mount | 1 | 0.173 in | 4.4 mm | Positive | 75 V | 4.5 V | Buck | No | 125 °C | -40 °C | Yes | 1 |
