CC1120 Series

Catalog

HIGH PERFORMANCE SUB-1 GHZ WIRELESS TRANSCEIVER FOR NARROWBAND SYSTEMS

Part	Memory Type	Memory Size (RAM)	Memory Size (SRAM)	Memory Size (ROM)	Modulation	RF Family/Standard	Mounting Type	Power - Output	Operating Temperature (Min)	Operating Temperature (Max)	Current - Transmitting (Min)	Current - Transmitting (Max)	Serial Interfaces	Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	GPIO Count	Frequency Range 4 (Max)	Frequency Range 3 (Max)	Frequency Range 2 (Max)	Frequency Range 3 (Min)	Frequency Range 4 (Min)	Frequency Range 2 (Min)	Frequency Range 1 (Max)	Frequency Range 1 (Min)	Data Rate (Max)	Sensitivity	Current - Receiving (Max)	Current - Receiving (Min)	Package / Case	Package Width	Package Name	Package Length	Supplied Contents	For Use With/Related Products	Contents	Frequency (Max)	Frequency (Min)	Utilized IC / Part	Frequency	Frequency
Texas Instruments CC1120RHBR	RAM ROM	256 B	256 B	4 kB	2FSK 2GFSK 4FSK 4GFSK MSK OOK	General ISM < 1GHz	Surface Mount	16 dBm	-40 °C	85 °C	32 mA	54 mA	SPI	TxRx + MCU	3.6 V	2 V	4	960 MHz	480 MHz	320 MHz	410 MHz	820 MHz	274 MHz	192 MHz	164 MHz	200 kbps	-127 dBm	23 mA	17 mA	32-VFQFN Exposed Pad	5 mm	32-VQFN	5 mm
Texas Instruments CC1120RHMR	RAM ROM	256 B	256 B	4 kB	2FSK 2GFSK 4FSK 4GFSK MSK OOK	General ISM < 1GHz	Surface Mount	16 dBm	-40 °C	85 °C	32 mA	54 mA	SPI	TxRx + MCU	3.6 V	2 V	4	960 MHz	480 MHz	320 MHz	410 MHz	820 MHz	274 MHz	192 MHz	164 MHz	200 kbps	-127 dBm	23 mA	17 mA	32-VFQFN Exposed Pad	5 mm	32-VQFN	5 mm

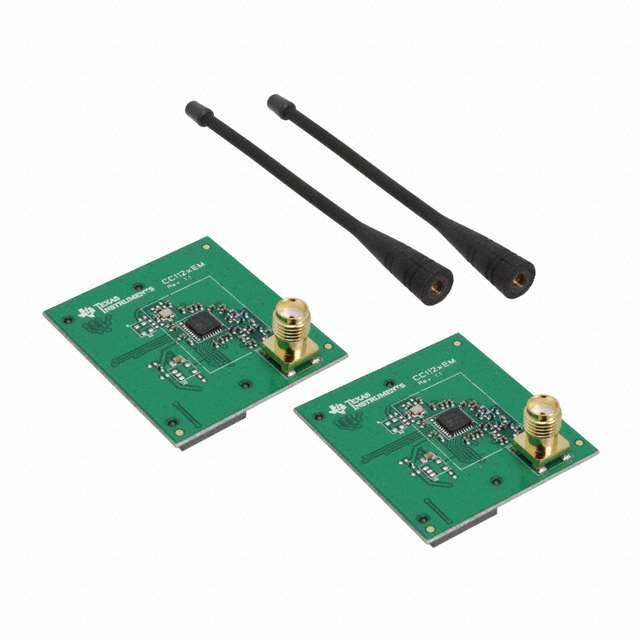

Texas Instruments CC1120EMK-420-470														Transceiver																				Accessories Board(s)	CC1120	Accessories Board	470 MHz	420 MHz	CC1120
Texas Instruments CC1120EMK-955														Transceiver																				Accessories Board(s)	CC1120	Accessories Board			CC1120	955 MHz
Texas Instruments CC1120DK														ISM Transceiver																				Accessories Board(s) Cable(s)	CC1120	Accessories Board Cable			CC1120	868 MHz 915 MHz	868MHz 915MHz
Texas Instruments CC1120RHBT	RAM ROM	256 B	256 B	4 kB	2FSK 2GFSK 4FSK 4GFSK MSK OOK	General ISM < 1GHz	Surface Mount	16 dBm	-40 °C	85 °C	32 mA	54 mA	SPI	TxRx + MCU	3.6 V	2 V	4	960 MHz	480 MHz	320 MHz	410 MHz	820 MHz	274 MHz	192 MHz	164 MHz	200 kbps	-127 dBm	23 mA	17 mA	32-VFQFN Exposed Pad	5 mm	32-VQFN	5 mm
Texas Instruments CC1120EMK-868-915														Transceiver																				Accessories Board(s)	CC1120	Accessories Board	915 MHz	868 MHz	CC1120
