LM3561 Series
Manufacturer: Texas Instruments
Beta
⌘K

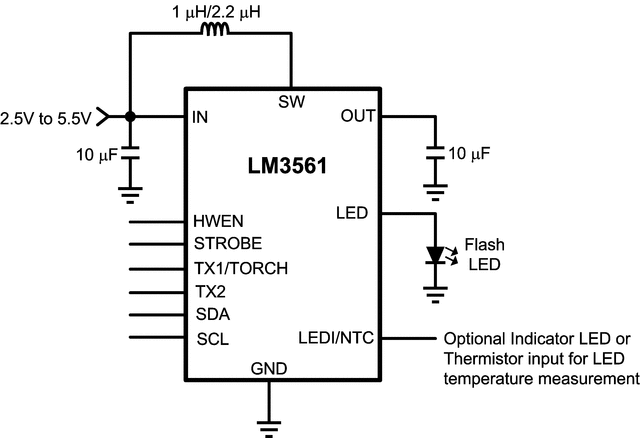

SYNCHRONOUS BOOST CONVERTER WITH 600MA HIGH SIDE LED DRIVER AND I2C-COMPATIBLE INTERFACE
| Part | Voltage - Supply (Max) | Dimming | Package / Case | Package Name | Voltage - Supply (Min) | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Internal Switch(s) | Topology | Frequency | Number of Outputs | Type | Applications | Current - Output / Channel | Supplied Contents | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 5.5 V | I2C | 12-WFBGA DSBGA | 12-DSBGA | 2.5 V | 85 °C | -40 °C | Surface Mount | Yes | Step-Up (Boost) | 2 MHz | 1 | DC DC Regulator | Camera Flash | 600 mA | |||||
 Texas Instruments | Board(s) | 2.7 V | 5.5 V | LM3561 | Board | |||||||||||||||
 Texas Instruments | 5.5 V | I2C | 12-WFBGA DSBGA | 12-DSBGA | 2.5 V | 85 °C | -40 °C | Surface Mount | Yes | Step-Up (Boost) | 2 MHz | 1 | DC DC Regulator | Camera Flash | 600 mA |
