DAC8803 Series

Catalog

14-BIT, QUAD CHANNEL, SERIAL INTERFACE, MULTIPLYING DIGITAL-TO-ANALOG CONVERTER

Part	Mounting Type	Architecture	Differential Output	Output Type	Number of Bits	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Settling Time (Typical)	Data Interface	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Reference Type	Number of D/A Converters	Package Width	Package Length	DNL (Max) (LSB)	INL (Max) (LSB)	Settling Time	Supplied Contents	Utilized IC / Part	DAC Type	Contents	Number of DAC's
Texas Instruments DAC8803IDBR	Surface Mount	Multiplying DAC	No	Current - Unbuffered	14 bits	2.7 V	5.5 V	2.7 V	5.5 V	500 ns	SPI	-40 °C	85 °C	28-SSOP	External	4 count	5.3 mm	0.209 in	1 LSB	1 LSB

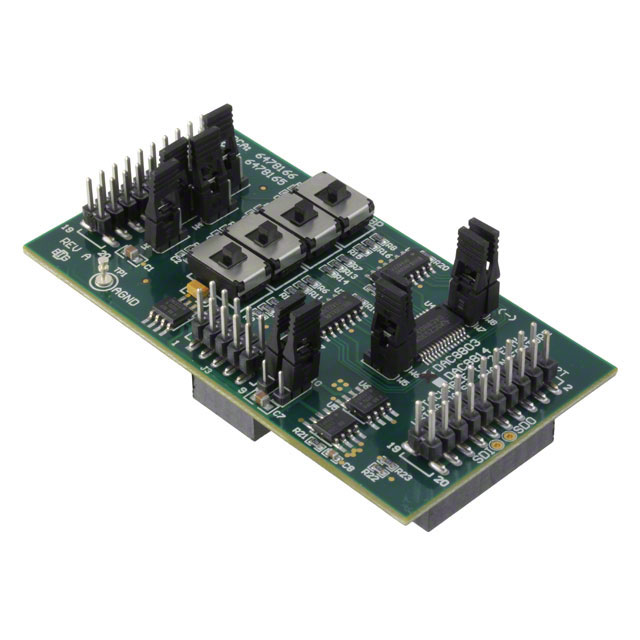

Texas Instruments DAC8803EVM					14 bits						SPI										300 ns	Board(s)	DAC8803	Current	Board	4
Texas Instruments DAC8803IDBT	Surface Mount	Multiplying DAC	No	Current - Unbuffered	14 bits	2.7 V	5.5 V	2.7 V	5.5 V	500 ns	SPI	-40 °C	85 °C	28-SSOP	External	4 count	5.3 mm	0.209 in	1 LSB	1 LSB
Texas Instruments DAC8803IDBRG4	Surface Mount	Multiplying DAC	No	Current - Unbuffered	14 bits	2.7 V	5.5 V	2.7 V	5.5 V	500 ns	SPI	-40 °C	85 °C	28-SSOP	External	4 count	5.3 mm	0.209 in	1 LSB	1 LSB
