DAC8565 Series

Catalog

16-BIT, QUAD CHANNEL, ULTRA-LOW GLITCH, VOUT DAC WITH 2.5V, 2PPM/C INT. REF. WITH RESET TO MIDSCA

Part	Output Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Architecture	Reference Type	Package Name	Differential Output	Number of Bits	Mounting Type	INL (LSB) Tolerance	DNL (LSB) Tolerance	Operating Temperature (Min)	Operating Temperature (Max)	Number of D/A Converters	Settling Time	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Package Length	Package Width	Data Interface	Supplied Contents	Contents	DAC Type	Utilized IC / Part	Number of DAC's
Texas Instruments DAC8565IAPW	Voltage - Buffered	2.7 V	5.5 V	String DAC	External Internal	16-TSSOP	No	16 bits	Surface Mount	4 LSB	0.5 LSB	-40 °C	105 °C	4 count	10 µs	2.7 V	5.5 V	0.173 in	4.4 mm	DSP SPI
Texas Instruments DAC8565IBPWR	Voltage - Buffered	2.7 V	5.5 V	String DAC	External Internal	16-TSSOP	No	16 bits	Surface Mount	4 LSB	0.5 LSB	-40 °C	105 °C	4 count	10 µs	2.7 V	5.5 V	0.173 in	4.4 mm	DSP SPI
Texas Instruments DAC8565IBPWRG4	Voltage - Buffered	2.7 V	5.5 V	String DAC	External Internal	16-TSSOP	No	16 bits	Surface Mount	4 LSB	0.5 LSB	-40 °C	105 °C	4 count	10 µs	2.7 V	5.5 V	0.173 in	4.4 mm	DSP SPI
Texas Instruments DAC8565IDPWR	Voltage - Buffered	2.7 V	5.5 V	String DAC	External Internal	16-TSSOP	No	16 bits	Surface Mount	4 LSB	0.5 LSB	-40 °C	105 °C	4 count	10 µs	2.7 V	5.5 V	0.173 in	4.4 mm	DSP SPI
Texas Instruments DAC8565IBPW	Voltage - Buffered	2.7 V	5.5 V	String DAC	External Internal	16-TSSOP	No	16 bits	Surface Mount	4 LSB	0.5 LSB	-40 °C	105 °C	4 count	10 µs	2.7 V	5.5 V	0.173 in	4.4 mm	DSP SPI

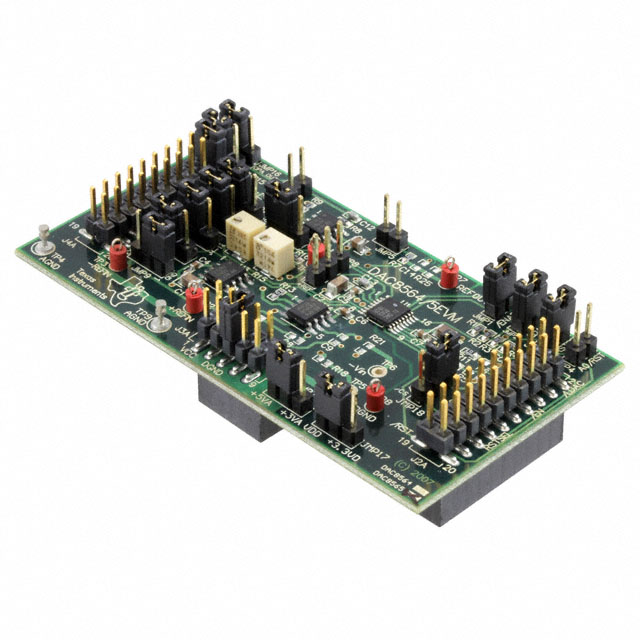

Texas Instruments DAC8565EVM								16 bits							8 µs					Serial	Board(s)	Board	Voltage	DAC8565	4
Texas Instruments DAC8565ICPWR	Voltage - Buffered	2.7 V	5.5 V	String DAC	External Internal	16-TSSOP	No	16 bits	Surface Mount	4 LSB	0.5 LSB	-40 °C	105 °C	4 count	10 µs	2.7 V	5.5 V	0.173 in	4.4 mm	DSP SPI
Texas Instruments DAC8565ICPW	Voltage - Buffered	2.7 V	5.5 V	String DAC	External Internal	16-TSSOP	No	16 bits	Surface Mount	4 LSB	0.5 LSB	-40 °C	105 °C	4 count	10 µs	2.7 V	5.5 V	0.173 in	4.4 mm	DSP SPI
Texas Instruments DAC8565IDPW	Voltage - Buffered	2.7 V	5.5 V	String DAC	External Internal	16-TSSOP	No	16 bits	Surface Mount	4 LSB	0.5 LSB	-40 °C	105 °C	4 count	10 µs	2.7 V	5.5 V	0.173 in	4.4 mm	DSP SPI
Texas Instruments DAC8565IAPWR	Voltage - Buffered	2.7 V	5.5 V	String DAC	External Internal	16-TSSOP	No	16 bits	Surface Mount	4 LSB	0.5 LSB	-40 °C	105 °C	4 count	10 µs	2.7 V	5.5 V	0.173 in	4.4 mm	DSP SPI
