LMX2531 Series

Catalog

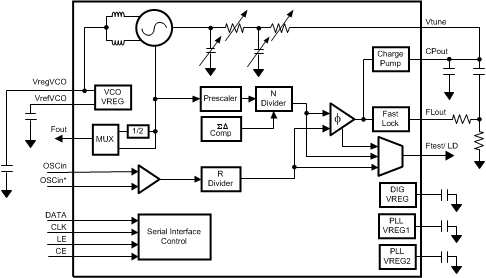

HIGH PERFORMANCE FREQUENCY SYNTHESIZER SYSTEM WITH INTEGRATED VCO

Part	PLL	Number of Circuits	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Multiplier	Divider	Input	Package Length	Package Name	Package Width	Package / Case	Mounting Type	Differential Output	Differential Input	Output	Input Ratio	Output Ratio	Frequency - Max	Type	Supplied Contents	Contents	Utilized IC / Part	Function
Texas Instruments LMX2531LQ1570E/NOPB	Yes	1	-40 °C	85 °C	3.2 V	2.8 V	No	Yes	Clock	6 mm	36-WQFN	6 mm	36-WFQFN Exposed Pad	Surface Mount	No	No	CMOS	2	2	1.636 GHz	Frequency Synthesizer (RF)
Texas Instruments LMX2531LQ2820E/NOPB	Yes	1	-40 °C	85 °C	3.2 V	2.8 V	No	Yes	Clock	6 mm	36-WQFN	6 mm	36-WFQFN Exposed Pad	Surface Mount	No	No	CMOS	2	2	2.925 GHz	Frequency Synthesizer (RF)
Texas Instruments LMX2531LQE1515E/NOPB	Yes	1	-40 °C	85 °C	3.2 V	2.8 V	No	Yes	Clock	6 mm	36-WQFN	6 mm	36-WFQFN Exposed Pad	Surface Mount	No	No	CMOS	2	2	1.58 GHz	Frequency Synthesizer (RF)
Texas Instruments LMX2531LQX2570E/NOPB	Yes	1	-40 °C	85 °C	3.2 V	2.8 V	No	Yes	Clock	6 mm	36-WQFN	6 mm	36-WFQFN Exposed Pad	Surface Mount	No	No	CMOS	2	2	2.79 GHz	Frequency Synthesizer (RF)
Texas Instruments LMX25311650EVAL																					Timing	Board(s)	Board	LMX2531LQ1650E	Frequency Synthesizer
Texas Instruments LMX2531LQX1570E/NOPB	Yes	1	-40 °C	85 °C	3.2 V	2.8 V	No	Yes	Clock	6 mm	36-WQFN	6 mm	36-WFQFN Exposed Pad	Surface Mount	No	No	CMOS	2	2	1.636 GHz	Frequency Synthesizer (RF)
Texas Instruments LMX2531LQE1226E/NOPB	Yes	1	-40 °C	85 °C	3.2 V	2.8 V	No	Yes	Clock	6 mm	36-WQFN	6 mm	36-WFQFN Exposed Pad	Surface Mount	No	No	CMOS	2	2	1.268 GHz	Frequency Synthesizer (RF)
Texas Instruments LMX2531LQ1910E/NOPB	Yes	1	-40 °C	85 °C	3.2 V	2.8 V	No	Yes	Clock	6 mm	36-WQFN	6 mm	36-WFQFN Exposed Pad	Surface Mount	No	No	CMOS	2	2	2.028 GHz	Frequency Synthesizer (RF)
Texas Instruments LMX2531LQ1778E/NOPB	Yes	1	-40 °C	85 °C	3.2 V	2.8 V	No	Yes	Clock	6 mm	36-WQFN	6 mm	36-WFQFN Exposed Pad	Surface Mount	No	No	CMOS	2	2	1.84 GHz	Frequency Synthesizer (RF)
Texas Instruments LMX2531LQ1515E/NOPB	Yes	1	-40 °C	85 °C	3.2 V	2.8 V	No	Yes	Clock	6 mm	36-WQFN	6 mm	36-WFQFN Exposed Pad	Surface Mount	No	No	CMOS	2	2	1.58 GHz	Frequency Synthesizer (RF)
