DRV8303 Series
Manufacturer: Texas Instruments
Beta
⌘K

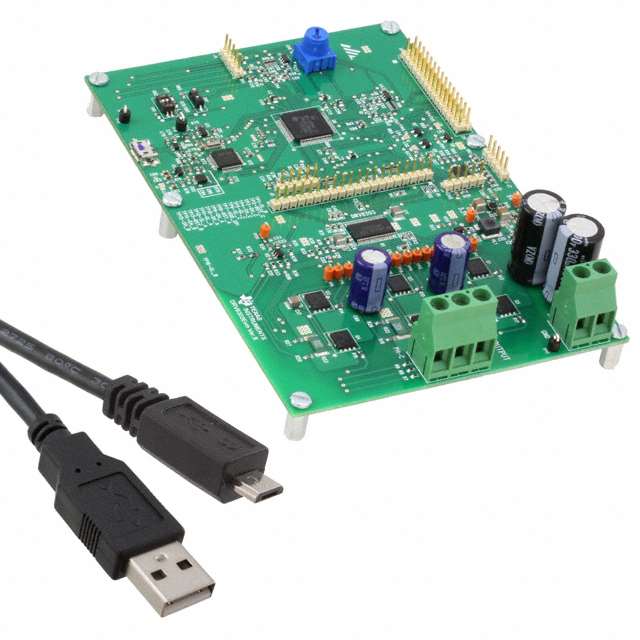

EVAL MODULE DRV8303
| Part | Supplied Contents | Type | Contents | Function | Primary Attributes | Utilized IC / Part | Embedded Bit Width | Embedded | Motor Type - AC, DC | Output Configuration Count | Output Configuration | Mounting Type | Interface | Package Name | Operating Temperature (Max) | Operating Temperature (Min) | Applications | Technology | Package Length | Package Width | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) Cable(s) | Power Management | Board Cable | Driver Motor Controller | Motors (BLAC PMSM) | DRV8303 TMS320F28035 | 32 bit | MCU Yes | ||||||||||||||
 Texas Instruments | Controller - Commutation Direction Management | Brushless DC (BLDC) | 3 | Pre-Driver - Half Bridge Pre-Driver - Half Bridge (3) | Surface Mount | SPI | 48-HTSSOP 48-PowerTFSOP | 125 °C | -40 °C | General Purpose | NMOS | 0.24 in | 6.1 mm | 60 V | 6 V | |||||||
 Texas Instruments | Controller - Commutation Direction Management | Brushless DC (BLDC) | 3 | Pre-Driver - Half Bridge Pre-Driver - Half Bridge (3) | Surface Mount | SPI | 48-HTSSOP 48-PowerTFSOP | 125 °C | -40 °C | General Purpose | NMOS | 0.24 in | 6.1 mm | 60 V | 6 V |
