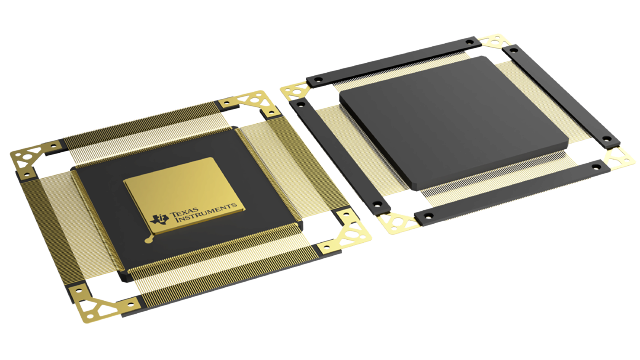

SMJ320C40 Series

Military grade C40 floating-point DSP - ceramic package

Catalog

Military grade C40 floating-point DSP - ceramic package

Part	Voltage - I/O	Non-Volatile Memory Type	Package Name	Package Length	Package Width	On-Chip RAM	Mounting Type	Package / Case	Clock Rate (Frequency)	Type	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Core	Interface

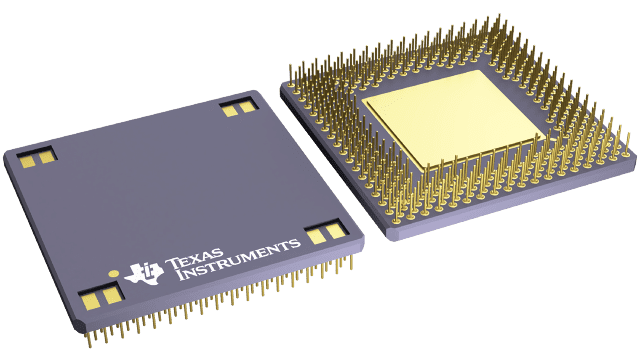

Texas Instruments SMJ320C40GFM50	5 V	External	325-CPGA	47.25 mm	47.25 mm	8 kB	Through Hole	325-BFCPGA Exposed Pad	50 MHz	Floating Point	-55 °C	125 °C	5 V	Host Interface McBSP

Catalog

Military grade C40 floating-point DSP - ceramic package

Description

The C40 digital signal processors (DSPs) are 32-bit, floating-point processors manufactured in 0.72-um, double-level metal CMOS technology. The 320C40 is a part of the fourth-generation DSPs from Texas Instruments and is designed primarily for parallel processing. For additional information when designing for cold temperature operation, please see Texas Instruments application report320C3x, 320C4x and 320MCM42x Power-up Sensitivity at Cold Temperature, literature number SGUA001. The C40 digital signal processors (DSPs) are 32-bit, floating-point processors manufactured in 0.72-um, double-level metal CMOS technology. The 320C40 is a part of the fourth-generation DSPs from Texas Instruments and is designed primarily for parallel processing. For additional information when designing for cold temperature operation, please see Texas Instruments application report320C3x, 320C4x and 320MCM42x Power-up Sensitivity at Cold Temperature, literature number SGUA001.
