ADS8484 Series

Catalog

18 BIT 1.25MSPS PARALLEL ADC W/REF, PSEUDO BIPOLAR, FULLY DIFFERENTIAL INPUT

Part	Reference Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Number of A/D Converters	Data Interface	Operating Temperature (Min)	Operating Temperature (Max)	Package Length	Package Name	Package Width	Configuration	Input Type	Package / Case	Number of Inputs	Architecture	Ratio - ADC	Ratio - S/H	Number of Bits	Voltage - Supply, Analog	Sampling Rate (Per Second)	Mounting Type	Supplied Contents	Contents	Utilized IC / Part	Input Range
Texas Instruments ADS8484IBRGZT	External Internal	2.7 V	5.25 V	1 count	Parallel	-40 °C	85 °C	7 mm	48-VQFN	7 mm	S/H-ADC	Differential	48-VFQFN Exposed Pad	1	SAR	1	1	18 bits	5 V	1.25 MHz	Surface Mount
Texas Instruments ADS8484IRGZR	External Internal	2.7 V	5.25 V	1 count	Parallel	-40 °C	85 °C	7 mm	48-VQFN	7 mm	S/H-ADC	Differential	48-VFQFN Exposed Pad	1	SAR	1	1	18 bits	5 V	1.25 MHz	Surface Mount
Texas Instruments ADS8484IRGZT	External Internal	2.7 V	5.25 V	1 count	Parallel	-40 °C	85 °C	7 mm	48-VQFN	7 mm	S/H-ADC	Differential	48-VFQFN Exposed Pad	1	SAR	1	1	18 bits	5 V	1.25 MHz	Surface Mount

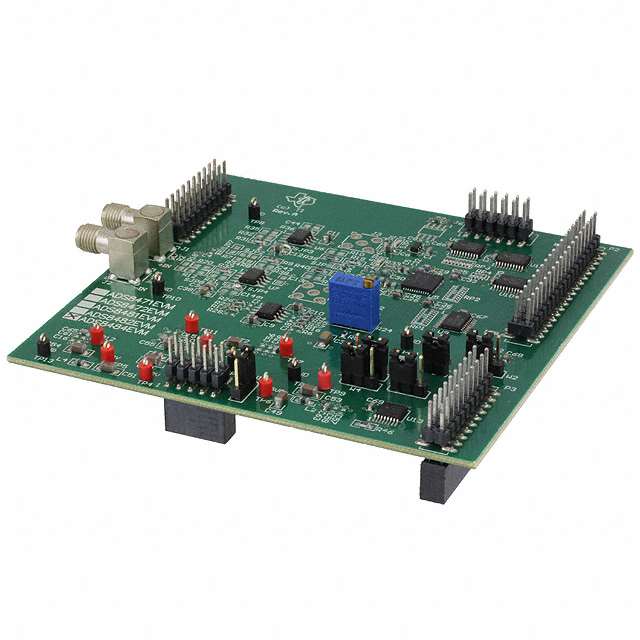

Texas Instruments ADS8484EVM				1 count	Parallel													18 bits		1.25 MHz		Board(s)	Board	ADS8484	±VREF
