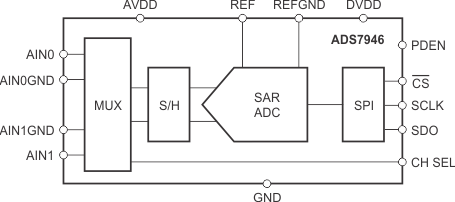

ADS7946 Series
Manufacturer: Texas Instruments
Beta
⌘K
ADS7946 ADC EVALUATION BOARD 2MSPS ADCPRO INSTALLER IDE
| Part | Supplied Contents | Contents | Number of A/D Converters | Power (Typ) | Utilized IC / Part | Number of Bits | Sampling Rate (Per Second) | Data Interface | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | Package Length | Package Name | Package Width | Input Type | Mounting Type | Voltage - Supply, Digital (Max) | Voltage - Supply, Digital (Min) | Operating Temperature (Max) | Operating Temperature (Min) | Architecture | Reference Type | Ratio - ADC | Ratio - S/H | Package / Case | Number of Inputs | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | Board | 1 count | 11.6 mW | ADS7946 | 14 bits | 2 MHz | Serial | ||||||||||||||||||
 Texas Instruments | 1 count | 14 bits | 2 MHz | SPI | 5.25 V | 2.7 V | 3 mm | 16-WQFN | 3 mm | Single Ended | Surface Mount | 5.25 V | 1.65 V | 125 °C | -40 °C | SAR | External | 1 | 1 | 16-WFQFN Exposed Pad | 2 | MUX-S/H-ADC | ||||
 Texas Instruments | 1 count | 14 bits | 2 MHz | SPI | 5.25 V | 2.7 V | 3 mm | 16-WQFN | 3 mm | Single Ended | Surface Mount | 5.25 V | 1.65 V | 125 °C | -40 °C | SAR | External | 1 | 1 | 16-WFQFN Exposed Pad | 2 | MUX-S/H-ADC |
