LM26 Series

±3°C Factory preset trip point temperature switch with analog output

Catalog

±3°C Factory preset trip point temperature switch with analog output

...

Part	Output	Switching Temperature	Output Type	Package Name	Trip Temperature Threshold	Selectable Hysteresis	Current - Supply	Mounting Type	Output Function	Operating Temperature (Max)	Operating Temperature (Min)	Accuracy	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Current - Output (Max)	Package / Case	Package Width	Package Length	Features
Texas Instruments LM26CIM5-YPA/NOPB	Active Low	115 °C	Open Drain	SOT-23-5	Hot	Yes	16 µA	Surface Mount	/OverTemp	125 °C	-55 °C	3 °C	5.5 V	2.7 V
Texas Instruments LM26LVCISD-105/NOPB	Active High Active Low	221 °F	Open Drain Push-Pull	6-WSON	Hot	No	8 µA	Surface Mount	/OverTemp OverTemp VTemp	150 °C	-50 °C	2.2 °C	5.5 V	1.6 V	7 mA	6-WDFN Exposed Pad	2.5 mm	2.2 mm	Trip Test
Texas Instruments LM26CIM5-PHA	Active Low	122 °F	Open Drain	SOT-23-5	Hot	Yes	16 µA	Surface Mount	/OverTemp	125 °C	-55 °C	3 °C	5.5 V	2.7 V
Texas Instruments LM26CIM5X-DPB/NOPB	Active Low	-25 °C	Open Drain	SOT-23-5	Cold	Yes	16 µA	Surface Mount	/UnderTemp	125 °C	-55 °C	3 °C	5.5 V	2.7 V
Texas Instruments LM26CIM5-SPA/NOPB	Active Low	70 °C 167 °F	Open Drain	SOT-23-5	Hot	Yes	16 µA	Surface Mount	/OverTemp	125 °C	-55 °C	3 °C	5.5 V	2.7 V
Texas Instruments LM26CIM5X-XPA/NOPB	Active Low	221 °F	Open Drain	SOT-23-5	Hot	Yes	16 µA	Surface Mount	/OverTemp	125 °C	-55 °C	3 °C	5.5 V	2.7 V
Texas Instruments LM26CIM5X-YHA	Active Low	230 °F	Open Drain	SOT-23-5	Hot	Yes	16 µA	Surface Mount	/OverTemp	125 °C	-55 °C	3 °C	5.5 V	2.7 V
Texas Instruments LM26CIM5X-PHA	Active Low	122 °F	Open Drain	SOT-23-5	Hot	Yes	16 µA	Surface Mount	/OverTemp	125 °C	-55 °C	3 °C	5.5 V	2.7 V
Texas Instruments LM26LVCISD-100/NOPB	Active High Active Low	100 °C	Open Drain Push-Pull	6-WSON	Hot	No	8 µA	Surface Mount	/OverTemp OverTemp VTemp	150 °C	-50 °C	2.2 °C	5.5 V	1.6 V	7 mA	6-WDFN Exposed Pad	2.5 mm	2.2 mm	Trip Test
Texas Instruments LM26CIM5X-VPA	Active Low	95 °C	Open Drain	SOT-23-5	Hot	Yes	16 µA	Surface Mount	/OverTemp	125 °C	-55 °C	3 °C	5.5 V	2.7 V

Catalog

±3°C Factory preset trip point temperature switch with analog output

Description

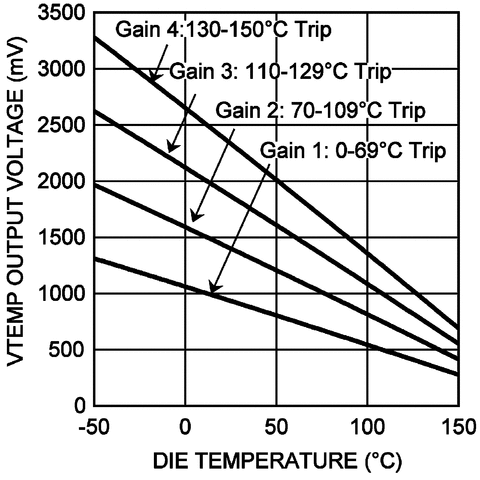

The LM26LV and LM26LV-Q1 are low-voltage, precision, dual-output, low-power temperature switches and temperature sensors. The temperature trip point (TTRIP) can be preset at the factory to any temperature in the range of 0°C to 150°C in 1°C increments. Built-in temperature hysteresis (THYST) keeps the output stable in an environment of temperature instability. In normal operation the LM26LV or LM26LV-Q1 temperature switch outputs assert when the die temperature exceeds TTRIP. The temperature switch outputs will reset when the temperature falls below a temperature equal to (TTRIP– THYST). The OVERTEMP digital output, is active-high with a push-pull structure, while theOVERTEMPdigital output, is active-low with an open-drain structure. The analog output, VTEMP, delivers an analog output voltage with Negative Temperature Coefficient (NTC). Driving the TRIP_TEST input high causes the digital outputs to be asserted for in-situ verification and causes the threshold voltage to appear at the VTEMP output pin, which could be used to verify the temperature trip point. The LM26LV’s and LM26LV-Q1’s low minimum supply voltage makes them ideal for 1.8-V system designs. The wide operating range, low supply current, and excellent accuracy provide a temperature switch solution for a wide range of commercial and industrial applications. The LM26LV and LM26LV-Q1 are low-voltage, precision, dual-output, low-power temperature switches and temperature sensors. The temperature trip point (TTRIP) can be preset at the factory to any temperature in the range of 0°C to 150°C in 1°C increments. Built-in temperature hysteresis (THYST) keeps the output stable in an environment of temperature instability. In normal operation the LM26LV or LM26LV-Q1 temperature switch outputs assert when the die temperature exceeds TTRIP. The temperature switch outputs will reset when the temperature falls below a temperature equal to (TTRIP– THYST). The OVERTEMP digital output, is active-high with a push-pull structure, while theOVERTEMPdigital output, is active-low with an open-drain structure. The analog output, VTEMP, delivers an analog output voltage with Negative Temperature Coefficient (NTC). Driving the TRIP_TEST input high causes the digital outputs to be asserted for in-situ verification and causes the threshold voltage to appear at the VTEMP output pin, which could be used to verify the temperature trip point. The LM26LV’s and LM26LV-Q1’s low minimum supply voltage makes them ideal for 1.8-V system designs. The wide operating range, low supply current, and excellent accuracy provide a temperature switch solution for a wide range of commercial and industrial applications.
