ADS1672 Series

Catalog

KIT DEMO FOR ADS1672

Part	Supplied Contents	Utilized IC / Part	Data Interface	Number of Bits	Minimum Sampling Rate (Per Second)	Maximum Sampling Rate (Per Second)	Contents	Input Range	Number of A/D Converters	Configuration	Package Width	Package Name	Package Length	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Reference Type	Sampling Rate (Per Second)	Number of Inputs	Voltage - Supply, Analog	Input Type	Mounting Type	Architecture	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)

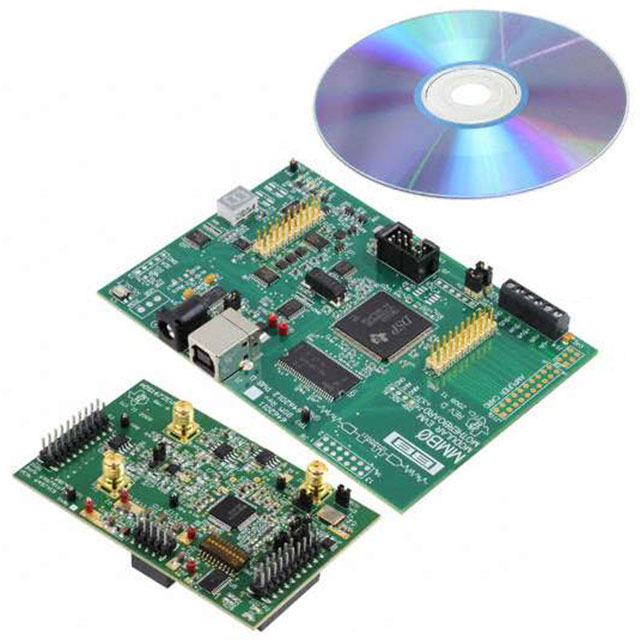

Texas Instruments ADS1672EVM-PDK	Board(s)	ADS1672	Serial	24 bits	78.1 kHz	625 kHz	Board	±VREF	1 count
Texas Instruments ADS1672IPAGRG4			LVDS - Serial SPI	24 bits					1 count	ADC	10 mm	64-TQFP	10 mm	2.7 V	3.3 V	External	625 kHz	1	5 V	Differential	Surface Mount	Sigma-Delta	64-TQFP	-40 °C	85 °C
Texas Instruments ADS1672IPAGR			LVDS - Serial SPI	24 bits					1 count	ADC	10 mm	64-TQFP	10 mm	2.7 V	3.3 V	External	625 kHz	1	5 V	Differential	Surface Mount	Sigma-Delta	64-TQFP	-40 °C	85 °C
Texas Instruments ADS1672IPAG			LVDS - Serial SPI	24 bits					1 count	ADC	10 mm	64-TQFP	10 mm	2.7 V	3.3 V	External Internal	625 kHz	1	5 V	Differential	Surface Mount	Sigma-Delta	64-TQFP	-40 °C	85 °C
