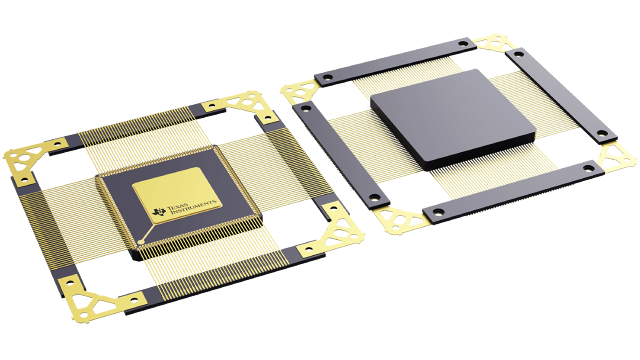

SMJ320F2812 Series

C2000™ military 32-bit MCU with 150-MHz, 256-kb Flash, EMIF

Catalog

C2000™ military 32-bit MCU with 150-MHz, 256-kb Flash, EMIF

Part	Non-Volatile Memory Type	Non-Volatile Memory Size	Operating Temperature (Max)	Operating Temperature (Min)	Clock Rate (Frequency)	Voltage - Core	Interface	Type	Mounting Type	On-Chip RAM	Package Name	Package / Case	Voltage - I/O
Texas Instruments SMJ320F2812HFGM150	FLASH	256 kB	125 °C	-55 °C	150 MHz	1.8 V	CAN I2C McBSP SPI UART	Fixed Point	Surface Mount	36 kB	172-CFP	172-BCQFP Exposed Pad and Tie Bar	3.3 V

Catalog

C2000™ military 32-bit MCU with 150-MHz, 256-kb Flash, EMIF

Description

The SM320F2812 device, member of the C28x™ DSP generation, is a highly integrated, high-performance solution for demanding control applications. The functional blocks and the memory maps are described in Section 3, Functional Overview. Throughout this document, SM320F2812 is abbreviated as F2812. The SM320F2812 device, member of the C28x™ DSP generation, is a highly integrated, high-performance solution for demanding control applications. The functional blocks and the memory maps are described in Section 3, Functional Overview. Throughout this document, SM320F2812 is abbreviated as F2812.
