ADC3243 Series
Manufacturer: Texas Instruments
Beta
⌘K
DUAL-CHANNEL, 14-BIT, 80-MSPS ANALOG-TO-DIGITAL CONVERTER (ADC)
| Part | Number of Bits | Mounting Type | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Number of A/D Converters | Features | Architecture | Number of Inputs | Data Interface | Input Type | Package Length | Package Name | Package Width | Voltage - Supply, Digital (Min) | Voltage - Supply, Digital (Max) | Configuration | Sampling Rate (Per Second) | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | Supplied Contents | Utilized IC / Part | Power (Typ) | Input Voltage (Value) | Contents | Reference Type | Ratio - ADC | Ratio - S/H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments | 14 bits | Surface Mount | 48-VFQFN Exposed Pad | -40 °C | 85 °C | 2 count | Simultaneous Sampling | Pipelined | 2 | LVDS - Serial | Differential | 7 mm | 48-VQFN | 7 mm | 1.7 V | 1.9 V | ADC | 80 MHz | 1.9 V | 1.7 V | ||||||||

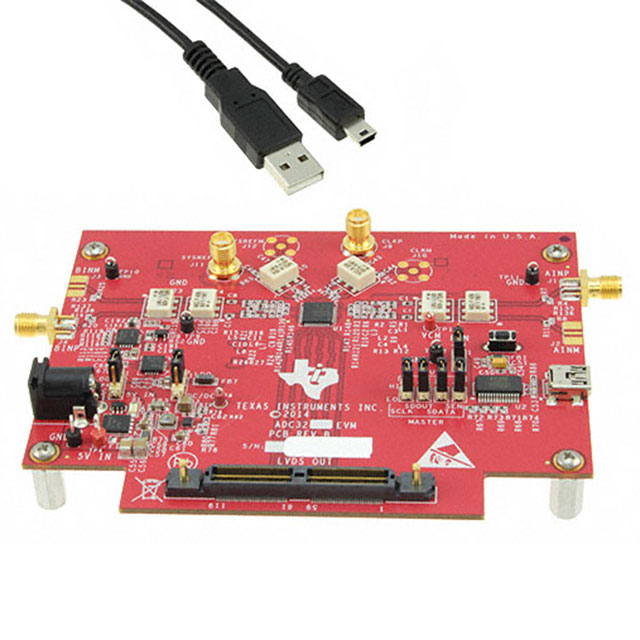

 Texas Instruments | 14 bits | 2 count | LVDS - Serial | 80 MHz | Board(s) | ADC3243 | 183 mW | 2 Vpp | Board | |||||||||||||||||||
 Texas Instruments | 14 bits | Surface Mount | 48-VFQFN Exposed Pad | -40 °C | 85 °C | 2 count | Simultaneous Sampling | Pipelined | 2 | LVDS - Serial | Differential | 7 mm | 48-VQFN | 7 mm | 1.7 V | 1.9 V | ADC | 80 MHz | 1.9 V | 1.7 V | External Internal | 1 | 0 |
