THS12082 Series

Catalog

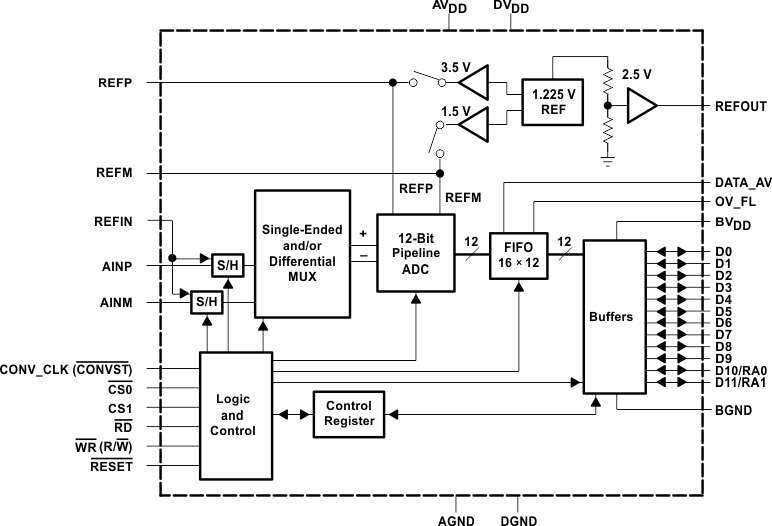

12 BIT, 8 MSPS ADC WITH DUAL CH., DSP/UP INTERFACE, 16X FIFO, CHANNEL AUTOSCAN, LOW POWER

Part	Features	Package Length	Package Name	Package Width	Number of Inputs	Number of Bits	Operating Temperature (Max)	Operating Temperature (Min)	Input Type	Sampling Rate (Per Second)	Reference Type	Architecture	Configuration	Ratio - S/H	Ratio - ADC	Mounting Type	Voltage - Supply, Digital (Max)	Voltage - Supply, Digital (Min)	Voltage - Supply, Analog	Data Interface	Number of A/D Converters
Texas Instruments THS12082CDAR	Simultaneous Sampling	0.24 in	32-TSSOP	6.1 mm	1 2	12 bits	70 °C	0 °C	Differential Single Ended	8 MHz	External Internal	Pipelined	H-MUX-ADC S	2	1	Surface Mount	5.25 V	3 V	5 V	Parallel	1 count
Texas Instruments THS12082IDA	Simultaneous Sampling	0.24 in	32-TSSOP	6.1 mm	1 2	12 bits	85 °C	-40 °C	Differential Single Ended	8 MHz	External Internal	Pipelined	H-MUX-ADC S	2	1	Surface Mount	5.25 V	3 V	5 V	Parallel	1 count
Texas Instruments THS12082CDA	Simultaneous Sampling	0.24 in	32-TSSOP	6.1 mm	1 2	12 bits	70 °C	0 °C	Differential Single Ended	8 MHz	External Internal	Pipelined	H-MUX-ADC S	2	1	Surface Mount	5.25 V	3 V	5 V	Parallel	1 count
Texas Instruments THS12082IDAR	Simultaneous Sampling	0.24 in	32-TSSOP	6.1 mm	1 2	12 bits	85 °C	-40 °C	Differential Single Ended	8 MHz	External Internal	Pipelined	H-MUX-ADC S	2	1	Surface Mount	5.25 V	3 V	5 V	Parallel	1 count
