ADS5409 Series

Catalog

DUAL-CHANNEL, 12-BIT, 900-MSPS ANALOG-TO-DIGITAL CONVERTER (ADC)

Part	Ratio - ADC	Ratio - S/H	Features	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Data Interface	Mounting Type	Input Type	Package Name	Package Length	Package Width	Operating Temperature (Min)	Operating Temperature (Max)	Architecture	Number of Bits	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 1 Min)	Number of Inputs	Configuration	Sampling Rate (Per Second)	Number of A/D Converters	Package / Case	Reference Type	Supplied Contents	Input Voltage (Value)	Power (Typ)	Contents	Utilized IC / Part
Texas Instruments ADS5409IZAY	1	1	Simultaneous Sampling	1.7 V	1.9 V	LVDS - Parallel	Surface Mount	Differential	196-NFBGA	12 mm	12 mm	-40 °C	85 °C	Pipelined	12 bits	1.9 V	3.45 V	3.15 V	1.7 V	2	S/H-ADC	900 MHz	2 count	196-LFBGA	External Internal
Texas Instruments ADS5409IZAYR	1	1	Simultaneous Sampling	1.7 V	1.9 V	LVDS - Parallel	Surface Mount	Differential	196-NFBGA	12 mm	12 mm	-40 °C	85 °C	Pipelined	12 bits	1.9 V	3.45 V	3.15 V	1.7 V	2	S/H-ADC	900 MHz	2 count	196-LFBGA	External Internal

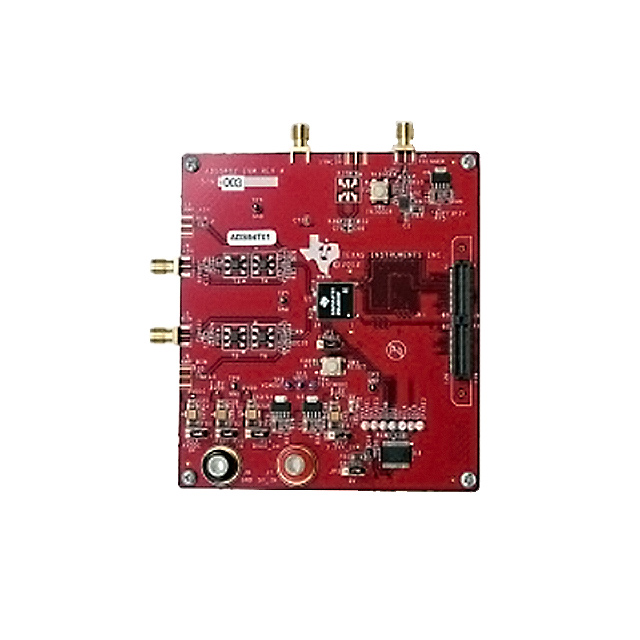

Texas Instruments ADS5409EVM						DDR LVDS									12 bits							900 MHz	2 count			Board(s)	1 Vpp	2.27 W	Board	ADS5409
