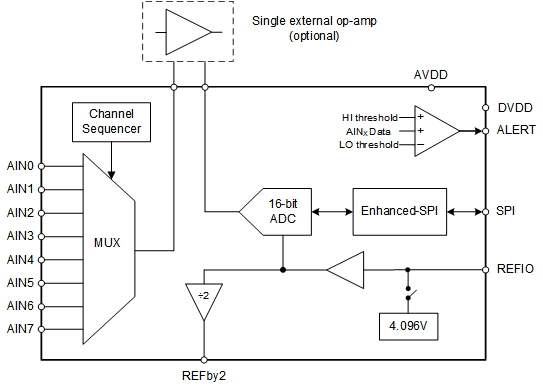

ADS8168 Series
Manufacturer: Texas Instruments
Beta
⌘K
DEVELOPMENT DATA ACQUISITION
| Part | Supplied Contents | Sampling Rate (Per Second) | Number of A/D Converters | Input Range | Number of Bits | Utilized IC / Part | Contents | Data Interface | Configuration | Input Type | Features | Package / Case | Voltage - Supply, Analog (Min) | Voltage - Supply, Analog (Max) | Voltage - Supply, Digital (Max) | Voltage - Supply, Digital (Min) | Ratio - ADC | Ratio - S/H | Number of Inputs | Mounting Type | Reference Type | Operating Temperature (Max) | Operating Temperature (Min) | Package Width | Package Name | Package Length | Architecture |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Board(s) | 1 MHz | 1 count | ±VREF/2 | 16 bits | ADS8168 | Board | Parallel | |||||||||||||||||||
 Texas Instruments | 1 MHz | 1 count | 16 bits | SPI | MUX-ADC | Pseudo-Differential Single Ended | Internal Oscillator | 32-VFQFN Exposed Pad | 3 V | 5.5 V | 5.5 V | 1.65 V | 1 | 0 | 8 | Surface Mount | External Internal | 125 °C | -40 °C | 5 mm | 32-VQFN | 5 mm | SAR | ||||
Texas Instruments | 1 MHz | 1 count | 16 bits | SPI | MUX-S/H-ADC | Pseudo-Differential Single Ended | Internal Oscillator | 32-VFQFN Exposed Pad | 3 V | 5.5 V | 5.5 V | 1.65 V | 1 | 1 | 8 | Surface Mount | External Internal | 125 °C | -40 °C | 5 mm | 32-VQFN | 5 mm | SAR |
