TLC59213 Series
Manufacturer: Texas Instruments
Beta
⌘K

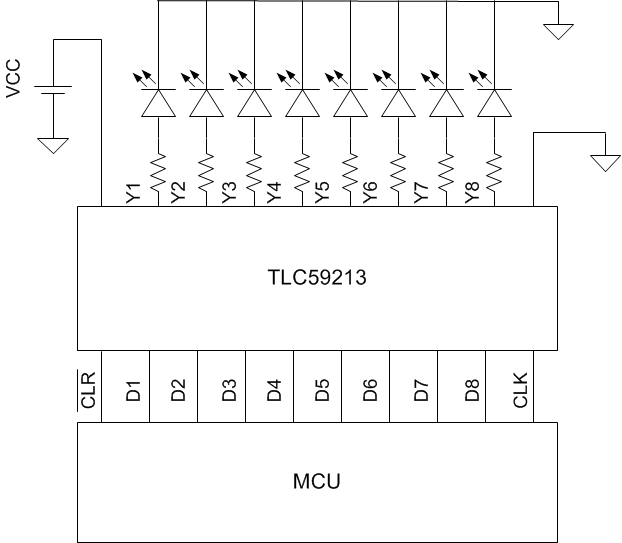

8-CHANNEL SOURCE DRIVER WITH LATCH
| Part | Package Name | Mounting Type | Package Length | Package Width | Operating Temperature (Min) | Operating Temperature (Max) | Applications | Internal Switch(s) | Type | Voltage - Supply (Max) | Current - Output / Channel | Dimming | Number of Outputs | Voltage - Supply (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 20-DIP 20-PDIP | Through Hole | 0.3 in | 7.62 mm | -40 °C | 85 °C | ||||||||
 Texas Instruments | 20-TSSOP | Surface Mount | 0.173 in | 4.4 mm | -40 °C | 85 °C | ||||||||
Texas Instruments | 20-TSSOP | Surface Mount | 0.173 in | 4.4 mm | -40 °C | 85 °C | ||||||||
Texas Instruments | 20-DIP 20-PDIP | Through Hole | 0.3 in | 7.62 mm | -40 °C | 85 °C | ||||||||
 Texas Instruments | 20-TSSOP | Surface Mount | 0.173 in | 4.4 mm | -40 °C | 85 °C | ||||||||
 Texas Instruments | 20-TSSOP | Surface Mount | 0.173 in | 4.4 mm | -40 °C | 85 °C | General Purpose | No | Linear | 13.2 V | 500 mA | No | 1 | 4.5 V |
