LM3537 Series
Manufacturer: Texas Instruments
Beta
⌘K

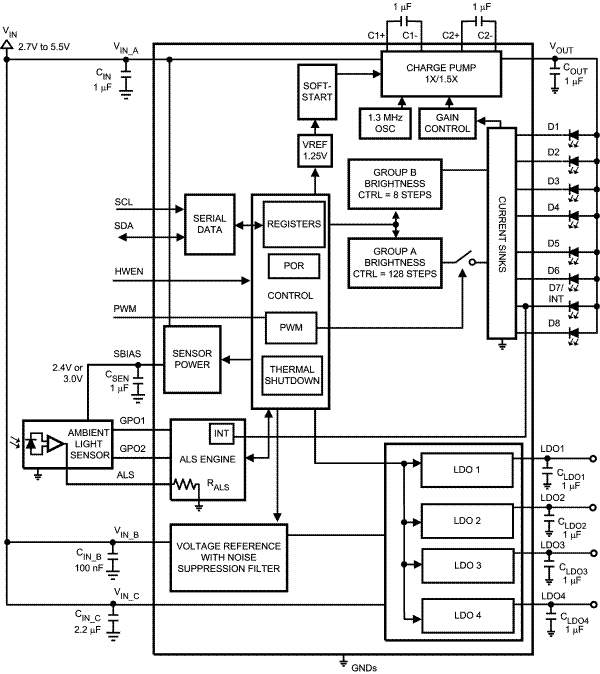

8-CHANNEL WLED DRIVER WITH FOUR INTEGRATED LDOS
| Part | Number of Outputs | Voltage - Supply (Max) | Dimming | Voltage - Supply (Min) | Mounting Type | Type | Applications | Current - Output / Channel | Package / Case | Internal Switch(s) | Voltage - Output (Min) | Voltage - Output (Max) | Frequency | Package Name | Topology | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 8 | 5.5 V | PWM | 2.7 V | Surface Mount | DC DC Regulator | Backlight | 25 mA | 30-WFBGA DSBGA | Yes | 2 V | 4 V | 1.3 MHz | 30-DSBGA | Switched Capacitor (Charge Pump) | 85 °C | -30 °C |
 Texas Instruments | 8 | 5.5 V | PWM | 2.7 V | Surface Mount | DC DC Regulator | Backlight | 25 mA | 30-WFBGA DSBGA | Yes | 2 V | 4 V | 1.3 MHz | 30-DSBGA | Switched Capacitor (Charge Pump) | 85 °C | -30 °C |
