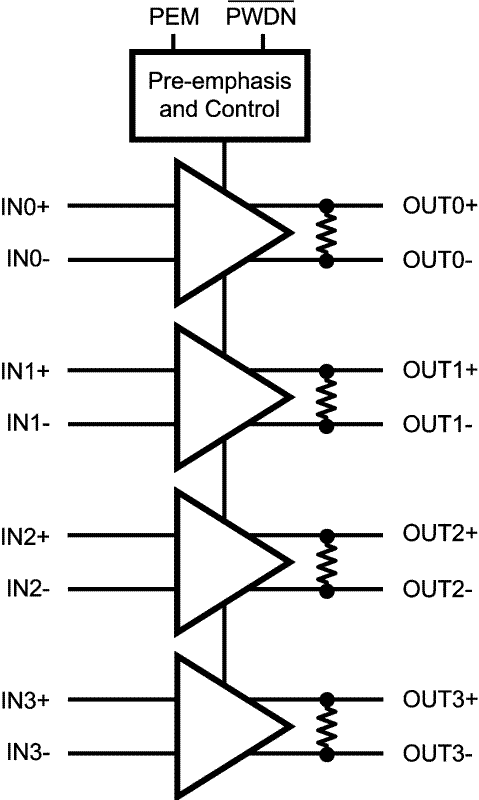

DS15BR401 Series

Catalog

LVDS BUFFER/REPEATER 2000MBPS 0.5V 48-PIN TQFP TRAY

Part	Delay Time	Current - Supply	Mounting Type	Applications	Number of Channels	Package / Case	Package Length	Package Name	Package Width	Operating Temperature (Min)	Operating Temperature (Max)	Type	Input	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Signal Conditioning	Capacitance - Input	Output	Data Rate (Max)
Texas Instruments DS15BR401TVS/NOPB	1 ns	175 mA	Surface Mount	LVDS	4	48-TQFP	7 mm	48-TQFP	7 mm	-40 °C	85 °C	Buffer ReDriver	CML LVDS LVPECL	3.6 V	3 V	Output Pre-Emphasis	3 pF	LVDS	2 Gbps
Texas Instruments DS15BR401TSQ/NOPB	1 ns	175 mA	Surface Mount	LVDS	4	32-WFQFN Exposed Pad	5 mm	32-WQFN	5 mm	-40 °C	85 °C	Buffer ReDriver	CML LVDS LVPECL	3.6 V	3 V	Output Pre-Emphasis	3 pF	LVDS	2 Gbps
Texas Instruments DS15BR401TVS	1 ns	175 mA	Surface Mount	LVDS	4	48-TQFP	7 mm	48-TQFP	7 mm	-40 °C	85 °C	Buffer ReDriver	CML LVDS LVPECL	3.6 V	3 V	Output Pre-Emphasis	3 pF	LVDS	2 Gbps
Texas Instruments DS15BR401TSQ/NOPB	1 ns	175 mA	Surface Mount	LVDS	4	32-WFQFN Exposed Pad	5 mm	32-WQFN	5 mm	-40 °C	85 °C	Buffer ReDriver	CML LVDS LVPECL	3.6 V	3 V	Output Pre-Emphasis	3 pF	LVDS	2 Gbps
Texas Instruments DS15BR401TVSX/NOPB	1 ns	175 mA	Surface Mount	LVDS	4	48-TQFP	7 mm	48-TQFP	7 mm	-40 °C	85 °C	Buffer ReDriver	CML LVDS LVPECL	3.6 V	3 V	Output Pre-Emphasis	3 pF	LVDS	2 Gbps
Texas Instruments DS15BR401TSQ	1 ns	175 mA	Surface Mount	LVDS	4	32-WFQFN Exposed Pad	5 mm	32-WQFN	5 mm	-40 °C	85 °C	Buffer ReDriver	CML LVDS LVPECL	3.6 V	3 V	Output Pre-Emphasis	3 pF	LVDS	2 Gbps
Texas Instruments DS15BR401TVSX/NOPB	1 ns	175 mA	Surface Mount	LVDS	4	48-TQFP	7 mm	48-TQFP	7 mm	-40 °C	85 °C	Buffer ReDriver	CML LVDS LVPECL	3.6 V	3 V	Output Pre-Emphasis	3 pF	LVDS	2 Gbps
Texas Instruments DS15BR401TSQX/NOPB	1 ns	175 mA	Surface Mount	LVDS	4	32-WFQFN Exposed Pad	5 mm	32-WQFN	5 mm	-40 °C	85 °C	Buffer ReDriver	CML LVDS LVPECL	3.6 V	3 V	Output Pre-Emphasis	3 pF	LVDS	2 Gbps
Texas Instruments DS15BR401TVS	1 ns	175 mA	Surface Mount	LVDS	4	48-TQFP	7 mm	48-TQFP	7 mm	-40 °C	85 °C	Buffer ReDriver	CML LVDS LVPECL	3.6 V	3 V	Output Pre-Emphasis	3 pF	LVDS	2 Gbps
Texas Instruments DS15BR401TVSX	1 ns	175 mA	Surface Mount	LVDS	4	48-TQFP	7 mm	48-TQFP	7 mm	-40 °C	85 °C	Buffer ReDriver	CML LVDS LVPECL	3.6 V	3 V	Output Pre-Emphasis	3 pF	LVDS	2 Gbps
