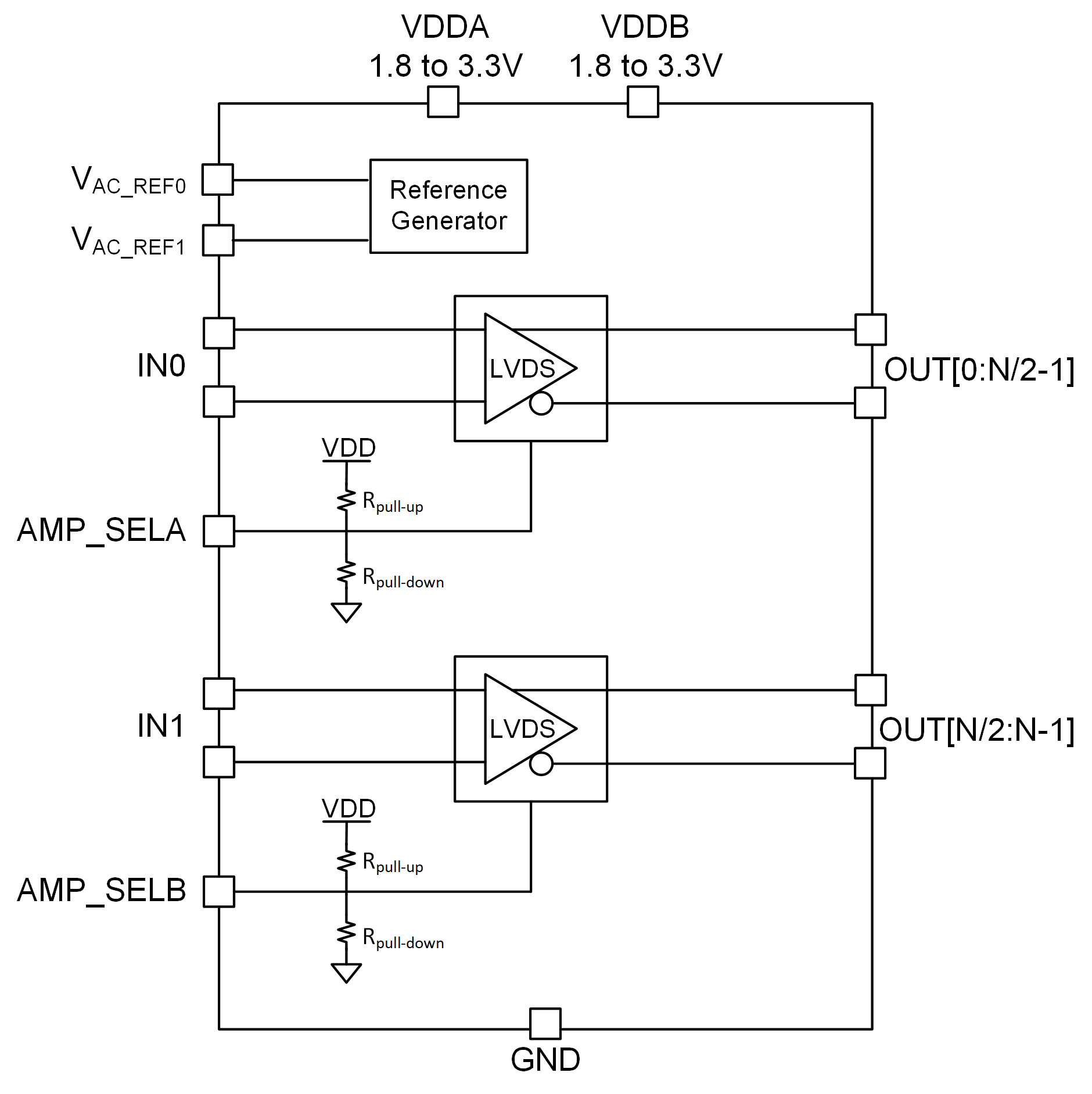

Dual bank 2-channel output LVDS 1.8V, 2.5V and 3.3V buffer with 0.7V output common mode option
Dual bank 2-channel output LVDS 1.8V, 2.5V and 3.3V buffer with 0.7V output common mode option
Dual bank 2-channel output LVDS 1.8V, 2.5V and 3.3V buffer with 0.7V output common mode option
| Part | Output Ratio | Input Ratio | Package / Case | Package Width | Package Name | Package Length | Number of Circuits | Mounting Type | Differential Input | Differential Output | Type | Output | Frequency - Max | Voltage - Supply (Range 3 Minimum) | Voltage - Supply (Range 1 Maximum) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 2 Maximum) | Voltage - Supply (Range 3 Maximum) | Operating Temperature (Max) | Operating Temperature (Min) | Input |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 6 | 1 | 40-VFQFN Exposed Pad | 6 mm | 40-VQFN | 6 mm | 2 | Surface Mount | Yes | Yes | Clock Buffer | LVDS | 2 GHz | 3.135 V | 1.89 V | 2.375 V | 1.71 V | 2.625 V | 3.465 V | 105 °C | -40 °C | CML HCSL LVCMOS LVDS LVPECL |
Texas Instruments | 6 | 1 | 40-VFQFN Exposed Pad | 6 mm | 40-VQFN | 6 mm | 2 | Surface Mount | Yes | Yes | Clock Buffer | LVDS | 2 GHz | 3.135 V | 1.89 V | 2.375 V | 1.71 V | 2.625 V | 3.465 V | 105 °C | -40 °C | CML HCSL LVCMOS LVDS LVPECL |
