XIO2001 Series

PCI Express® (PCIe®) to PCI bus translation bridge

Catalog

PCI Express® (PCIe®) to PCI bus translation bridge

Part	Mounting Type	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Maximum)	Package / Case	Package Name	Package Length	Package Width	Interface	Applications	Supplied Contents	Type	Contents	Function	Utilized IC / Part
Texas Instruments XIO2001IZGUR	Surface Mount	3 V	1.35 V	1.65 V	3.6 V	169-LFBGA	169-BGA MicroStar	12 mm	12 mm	PCI Express	PCI Express to PCI Translation Bridge

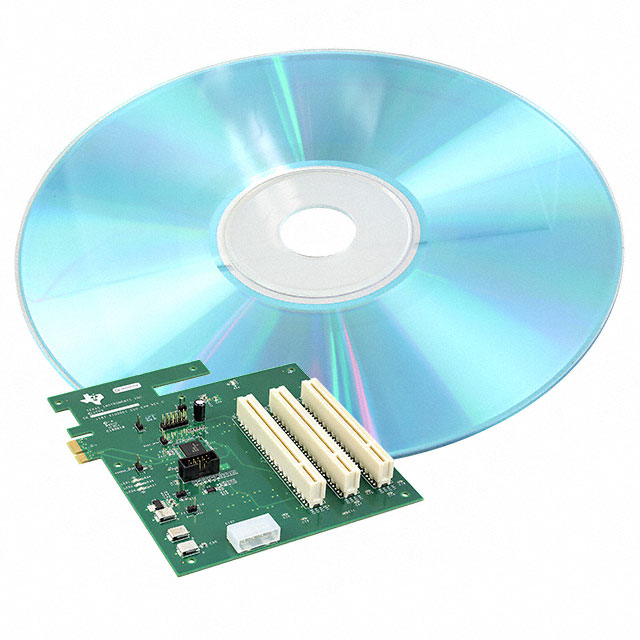

Texas Instruments XIO2001EVM												Board(s)	Interface	Board	PCI to PCI Bridge	XIO2001
Texas Instruments XIO2001IZGU	Surface Mount	3 V	1.35 V	1.65 V	3.6 V	169-LFBGA	169-BGA MicroStar	12 mm	12 mm	PCI Express	PCI Express to PCI Translation Bridge
Texas Instruments XIO2001PNP	Surface Mount	3 V	1.35 V	1.65 V	3.6 V	128-TQFP Exposed Pad	128-HTQFP	14 mm	14 mm	PCI Express	PCI Express to PCI Translation Bridge
Texas Instruments XIO2001IPNP	Surface Mount	3 V	1.35 V	1.65 V	3.6 V	128-TQFP Exposed Pad	128-HTQFP	14 mm	14 mm	PCI Express	PCI Express to PCI Translation Bridge
Texas Instruments XIO2001ZWS	Surface Mount	3 V	1.35 V	1.65 V	3.6 V	169-LFBGA	169-NFBGA	12 mm	12 mm	PCI Express	PCI Express to PCI Translation Bridge
Texas Instruments XIO2001IZWS	Surface Mount	3 V	1.35 V	1.65 V	3.6 V	169-LFBGA	169-NFBGA	12 mm	12 mm	PCI Express	PCI Express to PCI Translation Bridge
Texas Instruments XIO2001ZAJ	Surface Mount	3 V	1.35 V	1.65 V	3.6 V	144-TFBGA	144-NFBGA	7 mm	7 mm	PCI Express	PCI Express to PCI Translation Bridge
Texas Instruments XIO2001IZWSR	Surface Mount	3 V	1.35 V	1.65 V	3.6 V	169-LFBGA	169-NFBGA	12 mm	12 mm	PCI Express	PCI Express to PCI Translation Bridge
Texas Instruments XIO2001IZAJ	Surface Mount	3 V	1.35 V	1.65 V	3.6 V	144-TFBGA	144-NFBGA	7 mm	7 mm	PCI Express	PCI Express to PCI Translation Bridge

Catalog

PCI Express® (PCIe®) to PCI bus translation bridge

Description

The XIO2001 is a single-function PCI Express to PCI translation bridge that is fully compliant to thePCI Express to PCI/PCI-X Bridge Specification, Revision 1.0. For downstream traffic, the bridge simultaneously supports up to eight posted and four non-posted transactions. For upstream traffic, up to six posted and four non-posted transactions are simultaneously supported. The PCI Express interface is fully compliant to thePCI Express Base Specification, Revision 2.0. The PCI Express interface supports a ×1 link operating at full 250 MB/s packet throughput in each direction simultaneously. Also, the bridge supports the advanced error reporting including extended CRC (ECRC) as defined in thePCI Express Base Specification. Supplemental firmware or software is required to fully use both of these features. The XIO2001 is a single-function PCI Express to PCI translation bridge that is fully compliant to thePCI Express to PCI/PCI-X Bridge Specification, Revision 1.0. For downstream traffic, the bridge simultaneously supports up to eight posted and four non-posted transactions. For upstream traffic, up to six posted and four non-posted transactions are simultaneously supported. The PCI Express interface is fully compliant to thePCI Express Base Specification, Revision 2.0. The PCI Express interface supports a ×1 link operating at full 250 MB/s packet throughput in each direction simultaneously. Also, the bridge supports the advanced error reporting including extended CRC (ECRC) as defined in thePCI Express Base Specification. Supplemental firmware or software is required to fully use both of these features.
